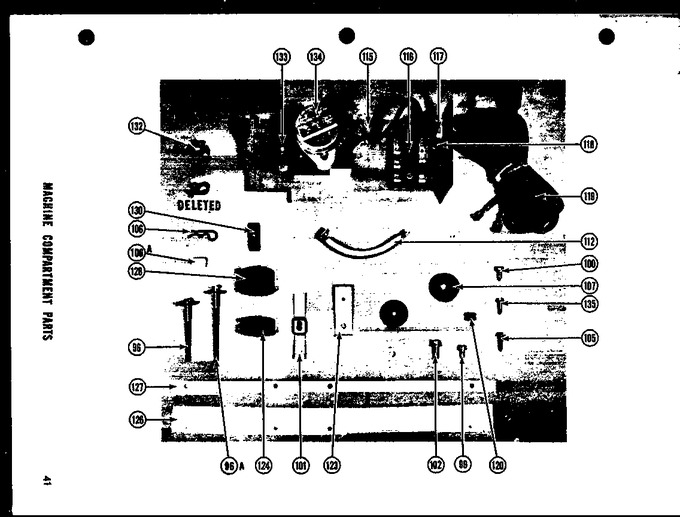

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 106 | A3072001 | Sleeve K |
|
- | |||||
| 115 | C3588101 | Bracket, Timer |
|
- | |||||
| 116 | B0594301 | Terminal Board |
|
- | |||||
| 117 | M0102602 | Clamp |
|
- | |||||
| 118 | M0211532 | Screw |
|
- | |||||
| 119 | B0594501 | Power Cord |
|
- | |||||
| 120 | YA0381501 | Clip, Waterline |
|
- | |||||
| 123 | A3085401 | Bracket, Support |
|
- | |||||
| 124 | A3013906 | Spacer |
|
- | |||||
| 126 | B0599601 | Seal, Fan Shroud |
|
- | |||||
| 127 | B0599701 | Retainer |
|
- | |||||
| 128 | A3013907 | Spacer |
|
- | |||||
| 130 | A3003601 | Nut A |
|
- | |||||
| 132 | M0110502 | Clip |
|
- | |||||
| 133 | A3083901 | Switch |
|
- | |||||
| 134 | D3932102 | Timer, Defrost |
|
- | |||||
| NI | M0211532 | Screw |
|
- | |||||
| NI | M0288302 | Speed Nut |
|
- | |||||
| NI | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| NI | M0202516 | Screw A |
|
- | |||||
| NI | M0203003 | Screw, Machine, No. 4 - 40 X 5 |
|
- |
