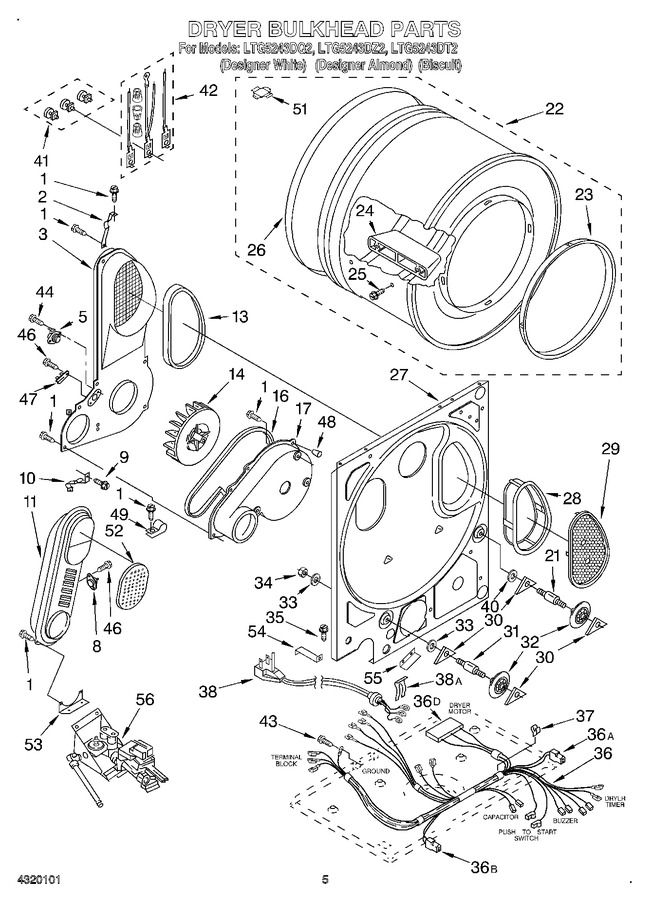

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 2 | 345396 | Clip, Air Duct To Bulkhead (Replaces: 3395396) |
|
- | |||||
| 3 | 696529 | Air Duct & Cover |
|
$ 129.26 | |||||
| 5 | WP3398128 | Thermostat, Internal Bias (Replaces: 3398128) |
|
Immediately | $ 139.29 | ||||
| 8 | W11050897 | Thermostat, Heater Box 205~f 96~c (Replaces: 3403140) |
|
Immediately | $ 15.30 | ||||
| 9 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 8.25 | |||||
| 10 | 279771 | Clip, Heater Box To Bulkhead (Replaces: 3398161) |
|
$ 15.05 | |||||
| 11 | 697269 | Heater Box |
|
- | |||||
| 13 | WP339956 | Seal, Air Duct To Bulkhead (Replaces: 339956) |
|
Immediately | $ 9.06 | ||||
| 14 | WP696426 | Wheel, Blower (Replaces: 696426) |
|
Immediately | $ 136.69 | ||||
| 16 | 8066094 | Seal, Fan Scroll |
|
$ 9.31 | |||||
| 17 | WP696418 | Fan Scroll (Replaces: 696418) |
|
$ 121.99 | |||||
| 21 | WPW10359269 | Shaft, Drum Roller (r.h.) (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 22 | 3391834 | Drum, Dryer (Replaces: 695943) |
|
$ 372.51 | |||||
| 23 | WP3394508 | Bearing, Ring (Replaces: 3394508) |
|
$ 131.86 | |||||
| 24 | 00685207 | Baffle, Drum (3) (Replaces: 685207) |
|
$ 326.00 | |||||
| 25 | WPW10109200 | Screw, 11-16 X 7/8 (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 26 | 279735 | Seal, Drum Rear (Replaces: 345648) |
|
Immediately | $ 66.71 | ||||
| 27 | 697540 | Bulkhead |
|
- | |||||
| 28 | W10828351 | Screen, Lint (Replaces: 348399) |
|
Immediately | $ 56.24 | ||||
| 29 | W10828351 | Cover, Lint Screen Outlet (Replaces: 685273) |
|
Immediately | $ 56.24 | ||||
| 30 | WPW10512946 | Tri Ring (4) (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 31 | WPW10359270 | Shaft, Drum Roller (l.h.) (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 32 | 349241T | Roller, Support (2) (Replaces: 3397588) |
|
Immediately | $ 29.53 | ||||
| 33 | WP348197 | Washer, Support (4) (Replaces: 348197) |
|
$ 7.55 | |||||
| 34 | WP3359452 | Nut, 3/8-16 (2) (Replaces: 3359452) |
|
Immediately | $ 7.55 | ||||
| 35 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 8.25 | |||||
| 36 | 697780 | Receptacle, (gas Valve) |
|
- | |||||
| 36 | 3395683 | Receptacle, Multi-terminal (connects With Dryer Motor) |
|
Immediately | $ 54.45 | ||||
| 36 | 717252 | Receptacle, Terminal (2-way) (connects With Door Switch Harness) |
|
- | |||||
| 36 | WP3396657 | Harness, Main Dryer Wiring (includes Illus. 36a, 36b, 36c, 36d & 36e) (Replaces: 3396657) |
|
$ 50.27 | |||||
| 37 | 693141 | Clip, Wiring Harness (3) |
|
- | |||||
| 38 | W11712577 | Clip, Strain Relief (power Cord) (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 38 | 694018 | Cord, Power 38a |
|
- | |||||
| 40 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.85 | |||||
| 41 | 279393 | Screw Kit (for Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 42 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 41) |
|
Immediately | $ 106.04 | ||||
| 43 | W10850756 | Screw, 10-32 X 1/2 (Replaces: 697776) |
|
$ 8.20 | |||||
| 44 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 46 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 47 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 48 | W10491983 | Cap, Screw (Replaces: 359702) |
|
- | |||||
| 49 | 488946 | Clip, Strain Relief (Replaces: 255563) |
|
$ 21.47 | |||||
| 51 | 8066086 | Drum, Hole Plug |
|
$ 11.29 | |||||
| 52 | 345335 | Cover, Manifold |
|
$ 110.25 | |||||
| 53 | 347455 | Support, Heater Box |
|
- | |||||
| 54 | 3387208 | Support, Corner Gas |
|
- | |||||
| 55 | 697571 | Guard, Sock |
|
- | |||||
| 56 | 3402856 | Burner |
|
- |
