| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

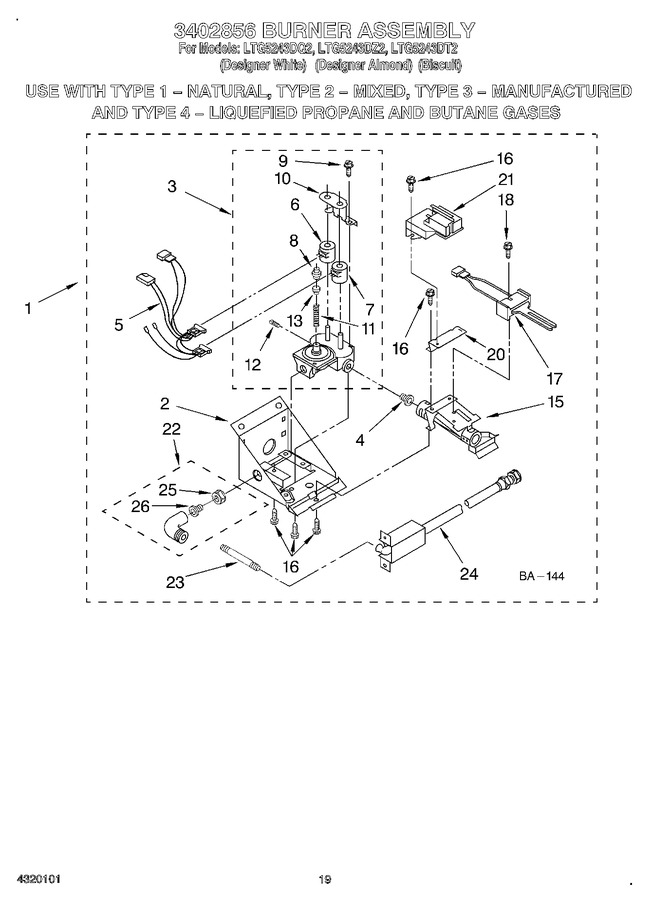

| 1 | 3402856 | Burner Assembly 60 Hz. |
|
- | |||||
| 2 | 697408 | Base, Burner |
|
- | |||||
| 3 | 3401777 | Valve, 60 Hz. |
|
- | |||||
| 4 | WP347743 | Orifice (l.p. Gas) (Replaces: 347743) |
|
$ 55.62 | |||||
| 4 | WP234822 | Orifice (natural Gas) (Replaces: 234822) |
|
$ 30.28 | |||||
| 5 | WP3401849 | Harness (Replaces: 3401849) |
|
$ 117.01 | |||||
| 6 | 279834 | Coil, 60 Hz. (split) (Replaces: 694539) |
|
Immediately | $ 32.85 | ||||
| 7 | 279834 | Coil, 60 Hz. (Replaces: 694540) |
|
Immediately | $ 32.85 | ||||
| 8 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 36.30 | |||||
| 9 | 694421 | Screw, 8-32 |
|
- | |||||
| 10 | 694538 | Bracket, Shunt |
|
$ 72.05 | |||||
| 11 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 25.48 | |||||
| 12 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- | |||||
| 13 | WP694423 | Screw (Replaces: 694423) |
|
$ 7.30 | |||||
| 15 | 8578392 | Burner (Replaces: 3392268) |
|
- | |||||
| 16 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 3387057) |
|
Immediately | $ 7.55 | ||||
| 17 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 18 | WPW10366705 | Screw And Washer 8-32 X 1 (Replaces: 3393909) |
|
$ 7.88 | |||||
| 20 | 697409 | Bracket, Sensor |
|
- | |||||
| 21 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 22 | 3406051 | Elbow Union Assembly |
|
$ 105.18 | |||||
| 23 | 3388638 | Nipple, Short |
|
- | |||||
| 24 | 3391118 | Supply Line (gas) |
|
- | |||||
| 25 | 233076 | Nut, Compression |
|
$ 43.19 | |||||
| 26 | W10402145 | Conversion Kit (type 1, 2 & 3) To Type (4) L.p.g. Elbow Union Assembly (Replaces: 49573) |
|
$ 114.21 | |||||
| 26 | 3393767 | Pipe |
|
$ 144.63 |
