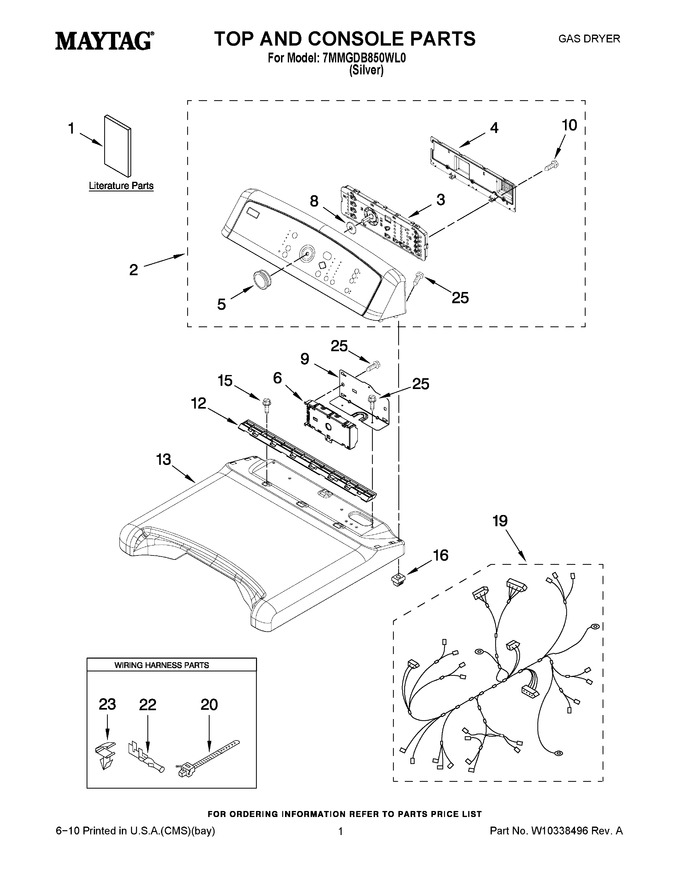

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10156734		Tech, Sheet		Appelez-nous	-
1	W10201177		Guide, Use & Care		Appelez-nous	-
2	W10252469		Console Assembly				$ 440.84
3	W10051114		Assembly, User Interface		Appelez-nous	-
4	W10051124		Cover, Ui-assembly				$ 251.11
5	WPW10051126		Knob Assembly   (Replaces: W10051126)				$ 51.21
6	W10111620		Control Electronic				$ 337.82
8	8572039		Seal-ui		Appelez-nous	-
9	8563853		Bracket, Machine Controller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.49
12	W10110295		Bracket, Console		Appelez-nous	-
13	W10283289		Top User Interface				$ 201.24
15	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 79.72
16	W10112673		Clip, Console				$ 9.29
19	W10319803		Harness, Wiring Main		Appelez-nous	-
20	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
22	94613		Terminal		Appelez-nous	-
23	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.79
25	W10131402		Screw		Appelez-nous	-
