SELECT A DIAGRAM

01 - Top And Console Parts

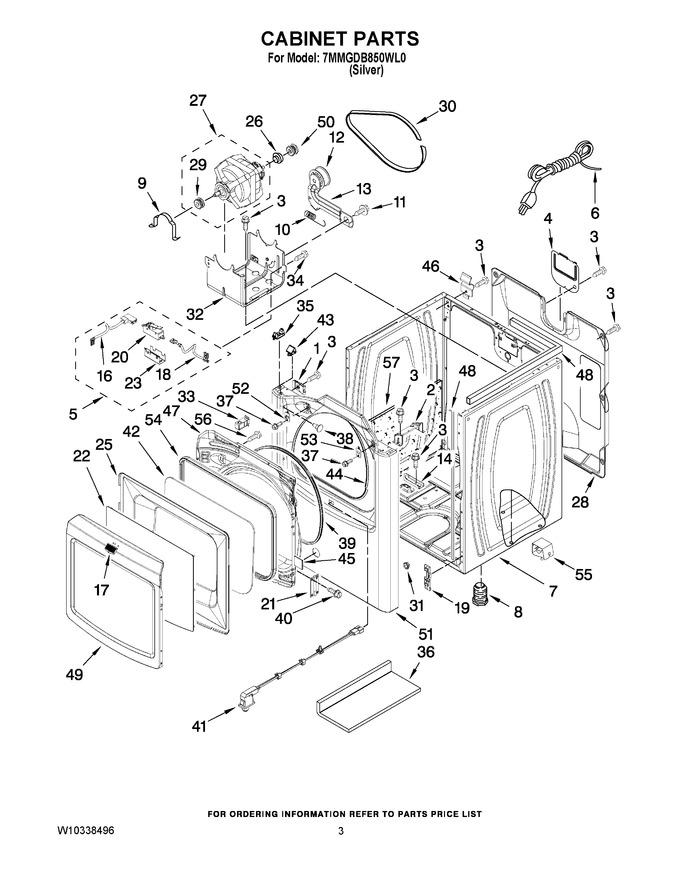

02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10007520		Clip, Ground				$ 30.94
2	8544753		Bracket, Burner		Appelez-nous	-
3	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 8.25
4	W11736322		Plate, Cover Terminal Block   (Replaces: 8558833)		Appelez-nous	-
5	WP8564012		Switch, Assembly   (Replaces: 8564012)				$ 104.86
6	W11222083		Cord, Power   (Replaces: 344020)				$ 126.62
7	W10283292		Cabinet				$ 247.44
8	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 8.55
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	279640		Pulley & Bearing, Assembly   (Replaces: 3388672)			Immediately	$ 32.51
13	WPW10547292		Idler Pulley Asm   (Replaces: 8547160)			Immediately	$ 43.98
14	W10201446		Bracket-gas Pipe		Appelez-nous	-
16	8539892		Wire Motor (to Belt Switch)		Appelez-nous	-
17	W10492808		Badge   (Replaces: W10323735)				$ 59.82
18	W10167613		Wire, Belt Switch (to Protector)		Appelez-nous	-
19	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 16.34
20	WP8564010		Switch & Actuator Assembly   (Replaces: 8564010)				$ 104.11
21	W10252472		Assembly, Hinge				$ 62.91
22	W10111858		Window, Outer				$ 86.24
23	8564011		Bracket, Switch				$ 19.08
25	W10111880		Bezel				$ 348.62
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
27	WPW10448896		Motor, Assembly 60 Hz.   (Replaces: W10136932)			Immediately	$ 343.09
28	W10140148		Panel, Rear				$ 139.84
29	W10139247		Pulley, Blower			Immediately	$ 133.55
30	WPW10136934		Belt, Drive   (Replaces: W10136934)			Immediately	$ 48.60
31	8578560		Hole, Plug (cabinet Base)				$ 95.94
32	8547158		Bracket, Motor				$ 65.31
33	WPW10111905		Door Catch Assembly   (Replaces: W10111905)			Immediately	$ 7.59
34	777849		Screw, 6-20 X 1 1/4   (Replaces: W10002600)				$ 7.36
35	WP8568303		Locator, Snap Down   (Replaces: 8568303)				$ 7.94
36	W11037143		Cover, Door Switch   (Replaces: W10215725)		Appelez-nous	-
37	WP3400805		Screw, 8-18 X.375   (Replaces: 3400805)				$ 7.55
38	W10144494		Plug, Hole				$ 35.14
39	W10239307		Seal, Door   (Replaces: W10221653)				$ 141.27
40	WP488627		Screw, 8-18 X .50   (Replaces: 342055)				$ 8.11
41	WPW10201785		Door Switch Assembly   (Replaces: W10201785)				$ 88.23
42	WPW10111857		Glass, Inner Door   (Replaces: W10111857)				$ 306.19
43	WP8576625		Lock, Top Front   (Replaces: 8576625)				$ 7.60
44	W10044490		Seal, Front Panel				$ 34.05
45	W10249704		Plug, Front Panel		Appelez-nous	-
46	WP8066217		Hinge Top   (Replaces: 238088)				$ 8.21
47	W10111900		Door, Inner				$ 94.92
48	WPW10224768		Seal, Foam   (Replaces: W10224768)				$ 75.69
49	W10252478		Door, Outer				$ 219.91
50	W10136930		Pulley, Drum Motor				$ 48.18
51	W10283296		Panel, Front		Appelez-nous	-
52	W10295405		Strike & Plate Assembly   (Replaces: W10111906)				$ 115.09
53	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 29.69
54	W10111859		Gasket-glass Inner				$ 121.25
55	W10183818		Cover-gas Valve		Appelez-nous	-
56	WP308685		Screw, 10-16 X .50   (Replaces: 3393008)			Immediately	$ 7.87
57	W10123956		Sound Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
