SELECT A DIAGRAM

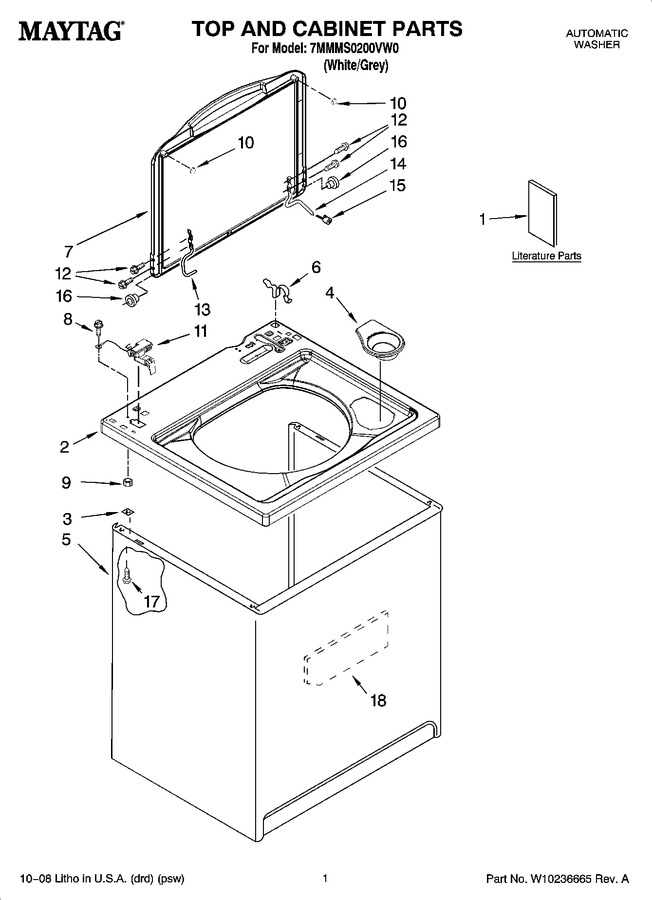

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10213649		Feature Sheet		Appelez-nous	-
1	W10153876		Wiring Diagram		Appelez-nous	-
1	W10214804		Energy Guide (mexico)		Appelez-nous	-
1	W10213639		Use & Care Guide		Appelez-nous	-
2	8543488		Top		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top   (Replaces: 62750)			Immediately	$ 8.07
4	8565967		Dispenser, Bleach		Appelez-nous	-
5	63424		Cabinet				$ 388.52
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 8.19
7	W10168897		Lid		Appelez-nous	-
8	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
9	W10080180		Nut, Hex   (Replaces: 8533959)				$ 14.15
10	W10181289		Bumper, Lid (2)		Appelez-nous	-
11	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
12	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.55
13	8559336		Hinge, Lid (l.h.)		Appelez-nous	-
14	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 31.04
15	19119		Bumper, Lid Hinge				$ 5.75
16	8319539		Bearing, Lid Hinge (2)				$ 5.51
17	WP3390631		Screw 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 8.25
18	W11096159		Cabinet - Damper, Sound   (Replaces: W10177046)				$ 28.73
