SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts

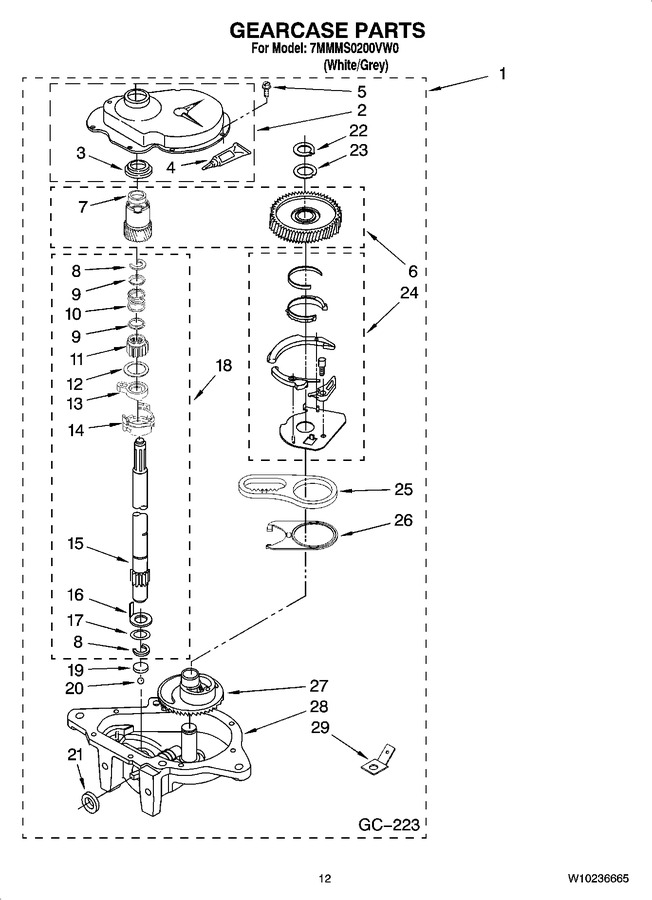

08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3360629		Gearcase (complete)   (Replaces: W10155438)			Immediately	$ 469.13
2	285202		Cover, Gearcase		Appelez-nous	-
3	WP3349985		Seal, Gearcase Cover   (Replaces: 3349985)			Immediately	$ 27.52
4	WP285195		Sealer, Gasket (.20 Fl. Oz.) (6 Ml)   (Replaces: 285195)			Immediately	$ 109.61
5	WP3351614		Screw, Gearcase Cover, Mounting (8) (10-24 X 3/8)   (Replaces: 3351614)			Immediately	$ 7.30
6	3360629		Spin Pinion & Gear Spin Kit   (Replaces: W10172898)			Immediately	$ 469.13
8	90369		Ring, Retaining (2)				$ 5.04
9	62677		Retainer, Spring (2)				$ 6.25
10	62676		Spring, Agitate				$ 56.99
11	WP389387		Gear, Agitate (includes Items 15 & 17)   (Replaces: W10110245)				$ 283.19
12	62619		Washer, Agitate Gear				$ 14.13
13	WP389387		Cam Follower (includes Item 14)   (Replaces: 62580)				$ 283.19
14	WP389387		Cam, Agitate (includes Item 13)   (Replaces: 3976349)				$ 283.19
15	389231N		Shaft, Agitator   (Replaces: 389231)		Appelez-nous	-
16	62618		Washer, Cam Thrust		Appelez-nous	-
17	WP388815		Washer, Intermediate   (Replaces: 388815)				$ 8.19
18	WP389387		Shaft, Agitator (complete)   (Replaces: 389387)				$ 283.19
19	285205		Bearing, Thrust   (Replaces: 16018)				$ 7.90
20	285205		Ball, Bearing   (Replaces: 85529)				$ 7.90
21	285352		Seal, Thrust Plug   (Replaces: W10111745)			Immediately	$ 42.25
22	3362552		Ring, Retaining		Appelez-nous	-
23	285766		Washer Kit, Thrust		Appelez-nous	-
24	388253A		Neutral Assembly   (Replaces: 388253)			Immediately	$ 61.67
25	3360629		Rack, Connecting   (Replaces: 8546456)			Immediately	$ 469.13
26	3360629		Actuator, Shift   (Replaces: 62621)			Immediately	$ 469.13
29	3949116		Terminal, Grounding Tab		Appelez-nous	-
NI	WP285195		Sealer, Gasket (.20 Fl. Oz.) (6 Ml)   (Replaces: 285195)			Immediately	$ 109.61
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 96.19
NI	285208		Lubricant (use Only In Brake Shoe Assembly On Roller And Pin)				$ 41.86
NI	367031		Drain Protector		Appelez-nous	-
NI	280129A		Siphon Break Kit   (Replaces: 280129)				$ 117.30
NI	280130		Drain Hose Adapter Kit		Appelez-nous	-
NI	40922		Drain Hose Extension Kit   (Replaces: 280131)				$ 67.77

    View Diagram in Separate Window       Print Part List
