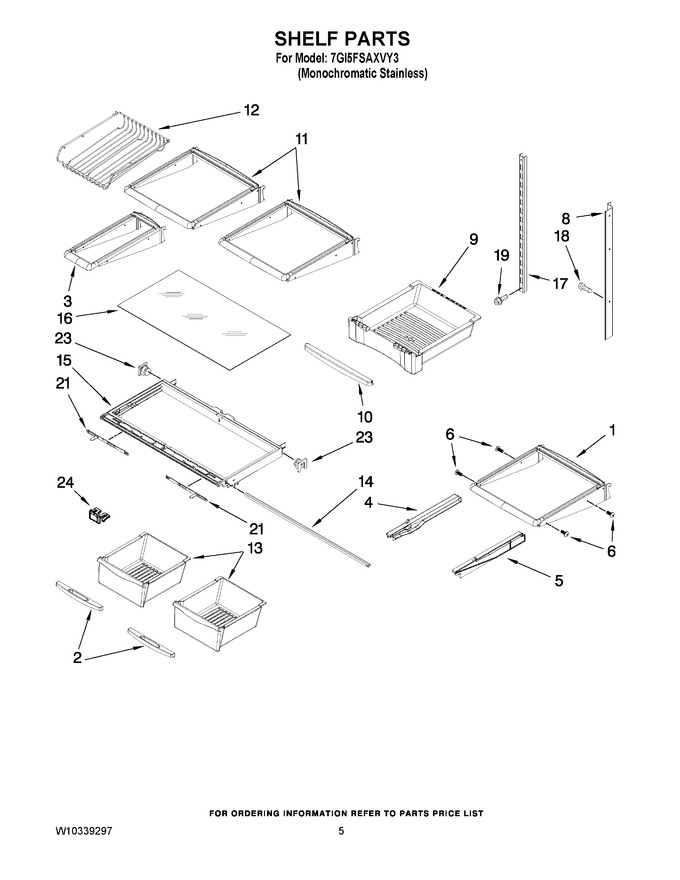

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP12883508SP | Shelf (2) (Replaces: 12883508SP) |
|
$ 320.63 | |||||
| 2 | WPW10297814 | Handle, Crisper Pan (2) (Replaces: W10141531) |
|
$ 164.69 | |||||
| 3 | W11197490 | Shelf, Mini (stationary) (Replaces: 12885501N) |
|
$ 242.05 | |||||
| 4 | WPW10194031 | Glide, Snack Pan Left Hand (Replaces: W10194031) |
|
$ 131.43 | |||||
| 5 | WPW10194032 | Glide, Snack Pan Right Hand (Replaces: W10194032) |
|
$ 127.69 | |||||
| 6 | W10854958 | Track, Pantry (Replaces: 12990302) |
|
$ 7.90 | |||||
| 8 | W10251968 | Ladder, Side (left) |
|
$ 27.38 | |||||
| 8 | W10251965 | Ladder, Side (right) |
|
$ 31.08 | |||||
| 9 | W10319331 | Snack Pan |
|
$ 61.34 | |||||
| 10 | W10158455 | Handle, Snack Pan |
|
- | |||||
| 11 | W11402525 | Shelf, Glide (1) (Replaces: 12883507) |
|
$ 234.44 | |||||
| 12 | 12503805 | Rack, Bottle |
|
- | |||||
| 13 | WPW10297814 | Pan, Crisper (2) (Replaces: W10297807) |
|
$ 164.69 | |||||
| 14 | W10490807 | Brace, Crisper Cover (Replaces: W10119258) |
|
$ 101.42 | |||||
| 15 | W10200927 | Frame, Crisper |
|
$ 95.48 | |||||
| 16 | WP12204826 | Glass, Crisper Cover (Replaces: 12204826) |
|
$ 254.08 | |||||
| 17 | W10273464 | Ladder, Center |
|
Immediately | $ 30.19 | ||||
| 18 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 19 | W10709795 | Screw (2) (Replaces: 12990515) |
|
$ 13.79 | |||||
| 21 | W10141530 | Slide, Humidity Control |
|
- | |||||
| 23 | WP13062602 | Supports, Crisper Frame (Replaces: 13062602) |
|
$ 84.87 | |||||
| 24 | 2223309 | Knob, Humidity Control |
|
$ 34.60 |
