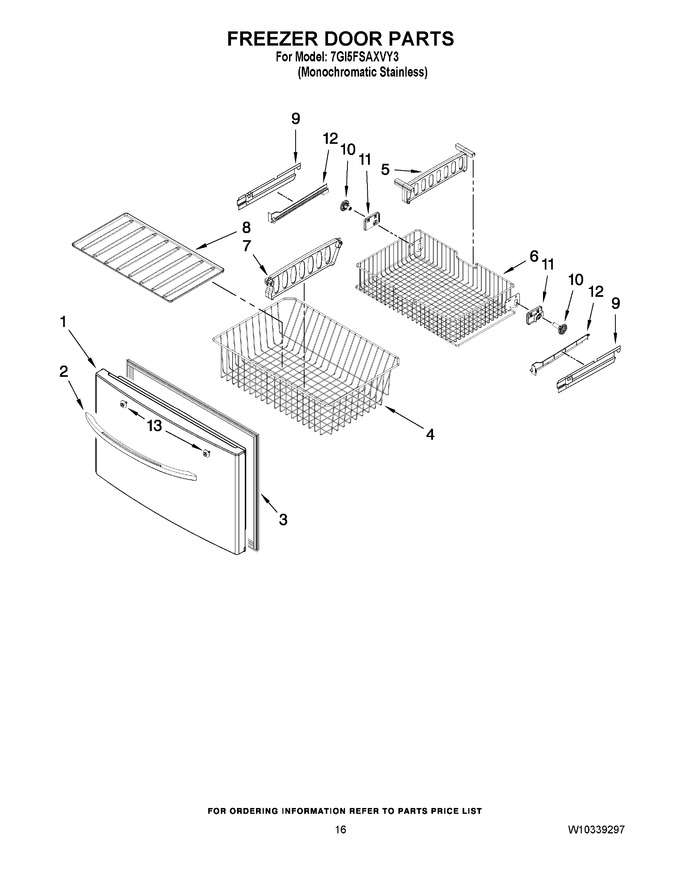

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977846S		Freezer Door (mono Stainless)		Appelez-nous	-
2	W10223025		Handle, Door (stainless)		Appelez-nous	-
3	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 308.19
4	W10150039		Basket, Lower				$ 128.38
5	W10146439		Divider, Upper Basket				$ 31.10
6	W11218042		Basket, Upper   (Replaces: W10146448)				$ 193.74
7	W10847995		Divider, Lower Basket   (Replaces: W10146440)				$ 88.08
8	13025202		Tray, Lower Basket				$ 31.80
9	WPW10280613		Cradle, Basket (right)   (Replaces: W10280613)				$ 87.76
9	WPW10280608		Cradle, Basket (left)   (Replaces: W10280608)				$ 87.76
10	WPW10474715		Gear Spur (left)   (Replaces: W10146446)			Immediately	$ 31.20
10	WPW10474716		Gear Spur (right)   (Replaces: W10158749)			Immediately	$ 30.88
11	W10348260		Gear Mount (right)   (Replaces: W10233899)				$ 85.62
11	W10348259		Gear Mount (left)   (Replaces: W10233898)				$ 85.59
12	W11489994		Rack (right)   (Replaces: W10284695)				$ 22.34
12	W11489993		Rack (left)   (Replaces: W10284694)				$ 22.34
13	WP12992902		Screw, Handle (shoulder)   (Replaces: 12992902)				$ 11.07
