New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10470301 Kit, Toe Grille (blk) Appelez-nous -
11 10470302 Assy, Toe Grille (white) Appelez-nous -
21 M0117303 Clip, Grille Special Order $ 5.65

41 10871105 Cap, Ref Handle Top(blk) Appelez-nous -
41 10871101 Cap, W Ref Handle Top Appelez-nous -
51 10871106 Cap-e Fz Hndl Top Appelez-nous -
51 10871102 Cap-w Fz Hndl Top Appelez-nous -
61 M0213517 Screw K Appelez-nous -
81 10765207 Trim, Ref Dr Top Appelez-nous -
91 10765208 Trim-e Fz Dr Top Appelez-nous -
91 10810311 Trim-e Top Fz Dr Appelez-nous -
101 R0195044 Tape, Adhesive 9 Ft Roll Appelez-nous -
121 10871205 Cap, Ref Handle Bot(black) Appelez-nous -
131 10871206 Cap- E Fz Hndl Bot. Appelez-nous -
141 12106204 Handle, Ref Dr (ebony) Appelez-nous -
151 10945907 Insert-e Handle Appelez-nous -
161 10602605 Trim, Refrig Door (bottom) Appelez-nous -
171 10602505 Trim, Frz Door (bottom) Appelez-nous -
181 C8972403 Stop, Door (blk) Appelez-nous -
331 12106205 Handle, Frz Dr (ebony) Appelez-nous -
341 10234611 Spacer-ref Appelez-nous -
351 10234612 Spacer Appelez-nous -
371 10096944 Panel-black Appelez-nous -
371 10096940 Panel-white Appelez-nous -
381 10096943 Panel-black Appelez-nous -
381 10096939 Panel-white Appelez-nous -
391 10494518 Trim-e Vertical Appelez-nous -
401 10849403 Cover E Hinge Appelez-nous -
411 10494603 Support Ref Trim (btm) Appelez-nous -
421 10494604 Support, Fz Trim Appelez-nous -
431 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

441 10810603 Trim- E Ctr I&w Dr Appelez-nous -
451 10810511 Trim, Bottom Door Ebony Appelez-nous -
461 10810312 Trim-e Top Ref Dr Appelez-nous -
471 10810403 Trim- E Ctr Dr Appelez-nous -
481 10810512 Trim, Bottom Door E Appelez-nous -
491 12139306 Handle, Door (black) Appelez-nous -
501 10953115 Insert, Trim (black) Appelez-nous -
511 10953116 Insert, Trim (black) Appelez-nous -
671 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

NI 10112406 Trim-oc Appelez-nous -
NI R0195037 Tape Kit Appelez-nous -
NI 10112407 Trim-oc Appelez-nous -
NI M0202514 Screw Appelez-nous -
NI 10112408 Trim-oc Appelez-nous -
NI 10112409 Trim-oc Appelez-nous -
NI R0195042 Double Backed Tape 6ft Roll Appelez-nous -
NI 10112410 Trim-oc Appelez-nous -
NI 10112411 Trim-oc Appelez-nous -
NI 10112412 Trim-oc Appelez-nous -
NI 10112405 Trim-oc Appelez-nous -
NI 10112404 Trim-oc Appelez-nous -
NI A3049001 Gusset-bezel Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

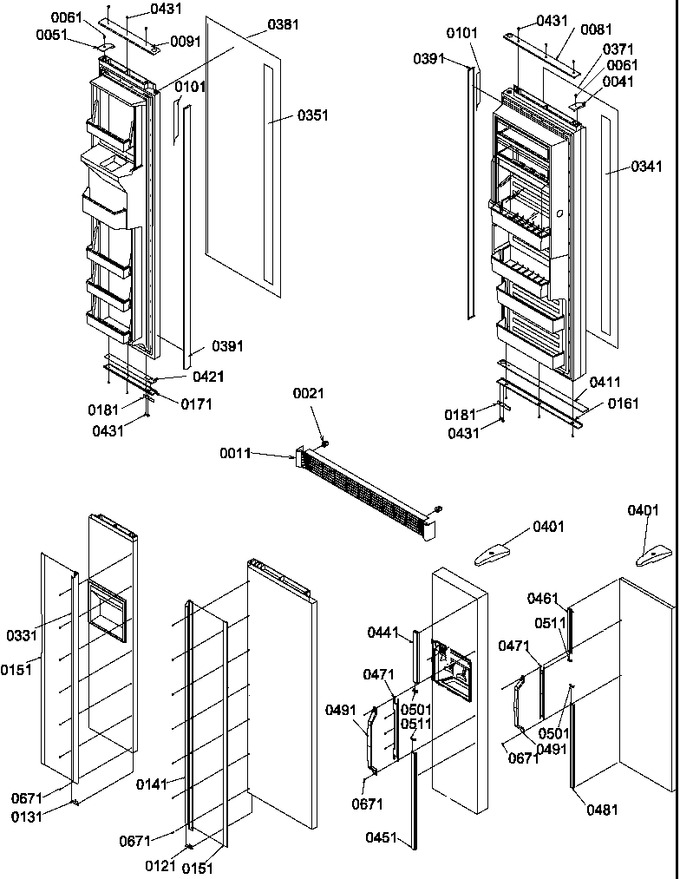

Diagram for SR520TW (BOM: P1310101W)
