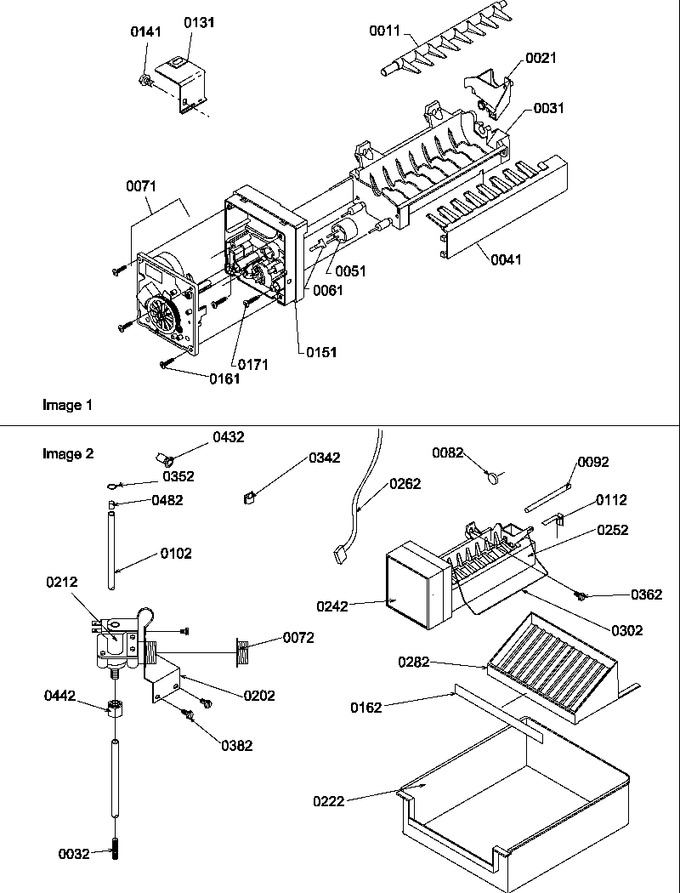

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	A3036901		Label Warranty		Appelez-nous	-
2	10549601		Label, Caution (ice Maker)		Appelez-nous	-
2	M0311301		Plug Button		Appelez-nous	-
2	10527008		Mnl, Use & Care I/m		Appelez-nous	-
2	M0108001		Clamp, Tube		Appelez-nous	-
11	WP627843		Ejector   (Replaces: R0183119)				$ 87.78
21	WP628356		Inlet, Water   (Replaces: R0156627)				$ 53.75
31	WPW10190972		Ice Maker, (220 V 50 Hz)   (Replaces: R0156831)				$ 177.49
32	A1055101		Spring, Antikink		Appelez-nous	-
41	WP2182124		Stripper, Ice   (Replaces: R0183120)				$ 90.35
51	WP627985		N/a See Notes-thermostat   (Replaces: R0161060)				$ 114.64
61	WP2315522		Retainer   (Replaces: R0191094)				$ 11.60
71	WPW10190972		Ice Maker, (220 V 50 Hz)   (Replaces: R0156724)				$ 177.49
72	10244902		Coupling		Appelez-nous	-
82	M0311301		Plug Button		Appelez-nous	-
92	A3127409		Ext, Fill Tube		Appelez-nous	-
102	WPB5705307		Tubing Plastic   (Replaces: B5705308)				$ 13.05
112	B5720301		Clip		Appelez-nous	-
131	WP2256087		Brkt, Ice Maker   (Replaces: B8391803)				$ 97.65
141	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
151	WP2195914		Support   (Replaces: R0183121)				$ 109.80
161	R0186041		Screw		Appelez-nous	-
162	C8986106		Insert, Juice Rack		Appelez-nous	-
171	R0186040		Screw		Appelez-nous	-
202	D7701601		Brkt, Water Valve		Appelez-nous	-
212	D7847801		Solenoid Valve		Appelez-nous	-
222	D7806209		Pan, Ice		Appelez-nous	-
242	D7820401		Cover Im		Appelez-nous	-
252	WPW10190972		Ice Maker, (220 V 50 Hz)   (Replaces: D7846302)				$ 177.49
262	D7879601		Harness, I/m		Appelez-nous	-
282	D7839701		Rack, Juice V		Appelez-nous	-
302	Y10901401		Arm, I.m. Shut-off		Appelez-nous	-
342	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
352	M0104003		Clip-speed		Appelez-nous	-
362	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
382	681390		Screw   (Replaces: M0251015)				$ 13.71
432	M0560005		Support		Appelez-nous	-
442	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
482	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
