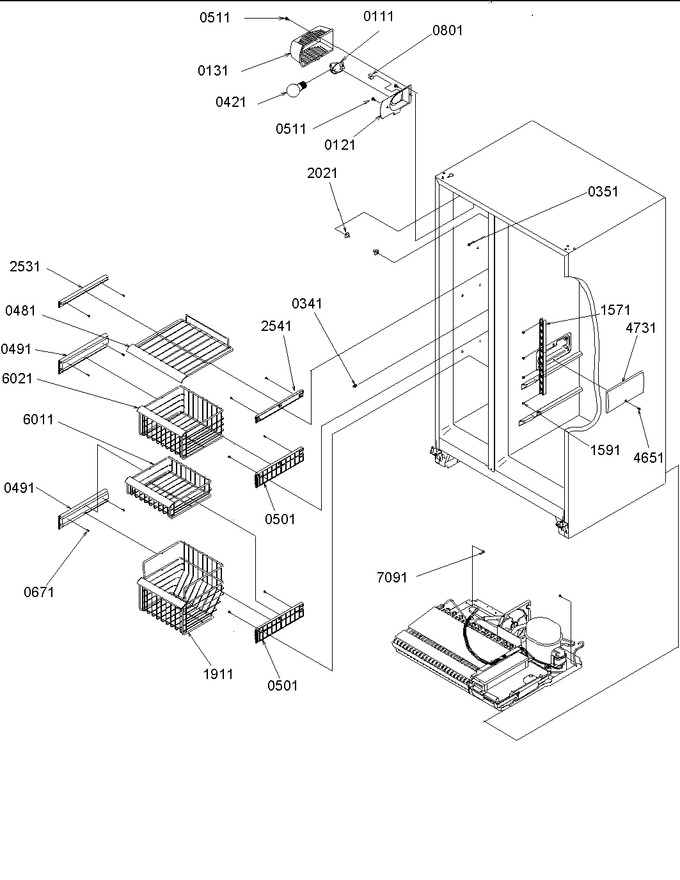

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 111 | D7714407 | Socket-light |
|
- | |||||
| 121 | D7753503 | Plate-light Socket |
|
- | |||||
| 131 | D7786602 | Shield, Light |
|
- | |||||
| 341 | M0322202 | Tie Wire |
|
- | |||||
| 351 | M0580007 | Grommet, Screw |
|
- | |||||
| 421 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 481 | 12012101 | Shelf, Freezer Wire |
|
- | |||||
| 491 | 12012901 | Rail, L. Dbl Shelf |
|
- | |||||
| 501 | 10991601 | Rail- R Double |
|
- | |||||
| 511 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 671 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 801 | B5733302 | Clip, Ground |
|
- | |||||
| 1571 | 12373101 | Ladder, Center |
|
- | |||||
| 1591 | M0238636 | Screw-sm |
|
- | |||||
| 1911 | 12011901 | Basket, 11`` Freezer |
|
- | |||||
| 2021 | M0560005 | Support |
|
- | |||||
| 2531 | 12012801 | Rail, L. Shelf |
|
- | |||||
| 2541 | 10991401 | Rail- R Shelf |
|
- | |||||
| 4651 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 4731 | Y10270101 | Cover-light |
|
- | |||||
| 6011 | 12011801 | Basket, 7`` Freezer |
|
- | |||||
| 6021 | 12011701 | Basket, 3`` Freezer |
|
- | |||||
| 7091 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 |
