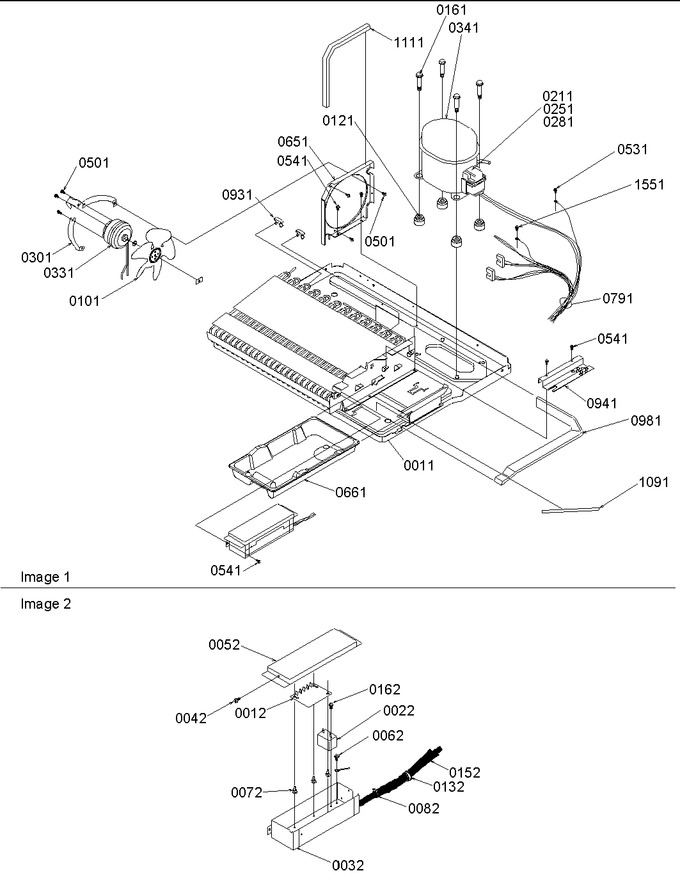

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10883404 | Assy, Cond/pan E-ct |
|
- | |||||
| 12 | 12050506 | Cont, Adap. Defrost |
|
- | |||||
| 22 | WP65889-4 | Capacitor (Replaces: C8931604) |
|
Immediately | $ 61.14 | ||||
| 32 | 10277032 | Hv Box-e Ct |
|
- | |||||
| 42 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 52 | 10276906 | Top, Hv Box |
|
- | |||||
| 62 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 72 | M0585504 | Support |
|
- | |||||
| 82 | M0585703 | Clamp, Wire |
|
- | |||||
| 101 | B5742604 | Blade, Fan |
|
- | |||||
| 121 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 132 | A3293504 | Bushing, Snap |
|
- | |||||
| 152 | 10973903 | Harness-mach |
|
- | |||||
| 161 | M0221523 | Screw, Shldr |
|
- | |||||
| 162 | M0223803 | Screw |
|
- | |||||
| 211 | 10377015 | Overload |
|
- | |||||
| 251 | WP10097202 | Ptc Relay (Replaces: 10097202) |
|
$ 124.93 | |||||
| 281 | 10757301 | Cover, Terminal |
|
- | |||||
| 301 | C8982102 | Brkt,cond. Mtr |
|
- | |||||
| 331 | 833697 | Motor, Fan (Replaces: 10884501) |
|
Immediately | $ 88.15 | ||||
| 341 | W10309990 | Kit, Compressor (1380) (Replaces: 12049703) |
|
Immediately | $ 632.81 | ||||
| 501 | M0223803 | Screw |
|
- | |||||
| 531 | M0253916 | Screw |
|
- | |||||
| 541 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 651 | 10845505 | Cond. Fn Shrd |
|
- | |||||
| 661 | 10845602 | Pan, Drain |
|
- | |||||
| 791 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 931 | 10874601 | Clip-cond. |
|
- | |||||
| 941 | 10845302 | H.v. Box Shelf-e Ct |
|
- | |||||
| 981 | A3189367 | Gasket-foam |
|
- | |||||
| 1091 | B5759645 | Gasket, Sealing |
|
- | |||||
| 1111 | A3030359 | Gasket |
|
- | |||||
| 1551 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 |
