Diagram # Part Number Description Series Availability Ships Price Add to Cart
WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) In-Stock Immediately $ 8.21

35 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

202 M0753003 Nut, Sleeve Appelez-nous -
203 M0753003 Nut, Sleeve Appelez-nous -
316 D7788912 Ass`y, Mc Back Appelez-nous -
326 M0219704 Screw Appelez-nous -
454 M0103904 Clamp, Speed Appelez-nous -
695 WP489399 Screw, Ca   (Replaces: M0239216) Special Order $ 7.30

862 A1055101 Spring, Antikink Appelez-nous -
863 A1055101 Spring, Antikink Appelez-nous -
872 A1055105 Spring, Anti Kink Appelez-nous -
873 A1055105 Spring, Anti Kink Appelez-nous -
1112 681390 Screw   (Replaces: M0251015) Special Order $ 13.71

1132 WPW10245167 Valve, Water   (Replaces: D7742203) Special Order $ 120.73

1212 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

1213 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

1221 WPM0114003 Clip, Speed   (Replaces: M0114003) Special Order $ 11.60

1262 WP627018 Nut, Sleeve   (Replaces: M0753001) Special Order $ 11.51

1263 WP627018 Nut, Sleeve   (Replaces: M0753001) Special Order $ 11.51

1302 10496302 Brkt, Water Valve Appelez-nous -
1311 10178505 Cover - Wire Appelez-nous -
1606 W10833902 Clamp, Tube   (Replaces: M0108105) Special Order $ 11.54

2061 A3189336 Gasket, Foam Appelez-nous -
2071 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 8.17

4025 10983002 Harness, Cabinet Appelez-nous -
4784 B5794201 Clamp Appelez-nous -
5916 M0227217 Screw, Sm Appelez-nous -
6056 10178405 Cover, O.c.back Appelez-nous -
6066 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

6076 M0103904 Clamp, Speed Appelez-nous -
6501 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

6504 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

7014 10678503 Cord, Power Appelez-nous -
7024 WPB2150504 Drier   (Replaces: B2150504) Special Order $ 136.98

7044 10547001 Clip, Drier Appelez-nous -
7124 WP489399 Screw, Ca   (Replaces: M0239216) Special Order $ 7.30


    View Diagram in Separate Window     Print Icon   Print Part List

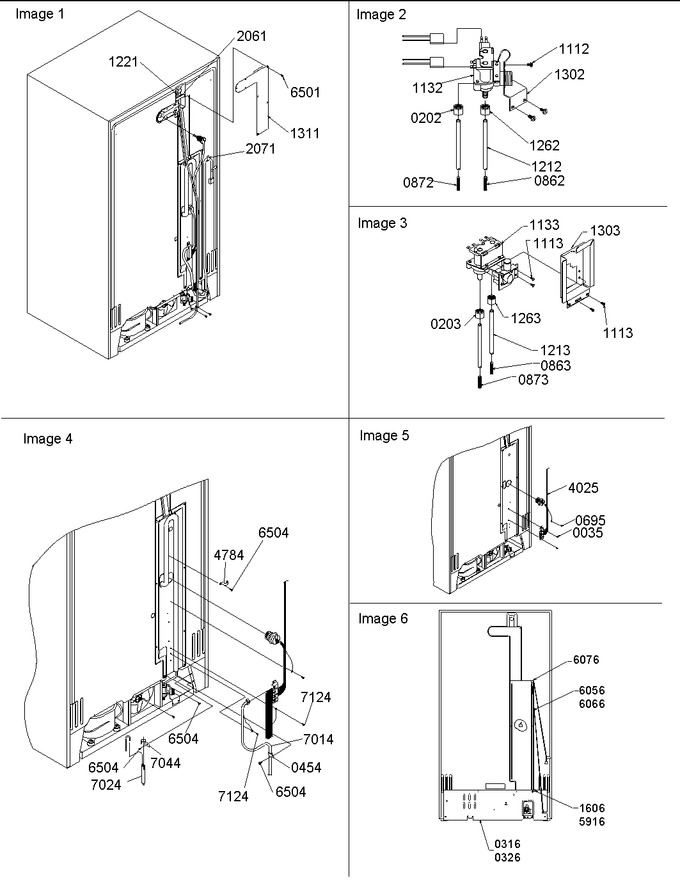

Diagram for SRD20S4W (BOM: P1190810W W)
