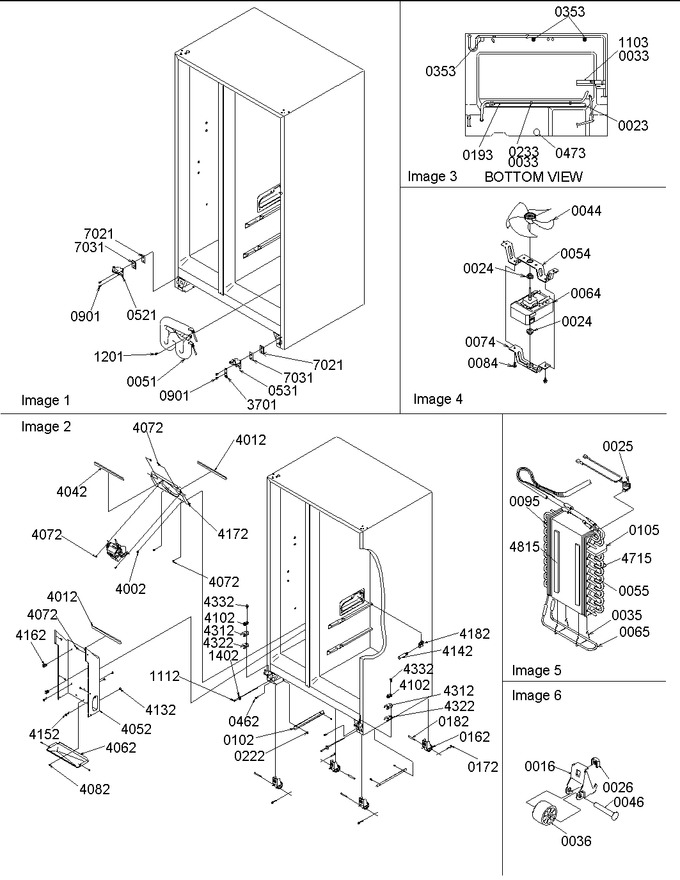

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | C8742401 | Assy, Roller Bracket |
|
- | |||||
| 23 | 10906506 | Insul., Oc Bot |
|
- | |||||
| 24 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 25 | R0161087 | Thermostat (Replaces: 12017814) |
|
$ 128.76 | |||||
| 26 | M0286708 | Nut, Speed |
|
$ 47.85 | |||||
| 33 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 35 | W11673433 | Clip, Evap Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 36 | WP10450603 | Roller (Replaces: 10450602) |
|
$ 8.27 | |||||
| 44 | WP12059901 | Fan-evap/5.250 Blade (Replaces: 12059901) |
|
$ 19.67 | |||||
| 46 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 51 | 10988502 | Tank-water |
|
- | |||||
| 54 | 10656101 | Brkt Mtr |
|
- | |||||
| 55 | R0170055 | Assy,low Side(sxs 22) |
|
$ 322.79 | |||||
| 64 | 10654206 | Motor, Evap Fan |
|
- | |||||
| 65 | WP12049801 | Heater, Evap (Replaces: 12049801) |
|
$ 149.50 | |||||
| 74 | 10656001 | Brk`t-mtr Mt/lw |
|
- | |||||
| 84 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 95 | 10629601 | Block, Air Coil (left) |
|
- | |||||
| 102 | C8913701 | Support, Mc |
|
- | |||||
| 105 | 10629001 | Block, Air Coil (right) |
|
- | |||||
| 162 | C8956101 | Assy, Roller Bracket |
|
- | |||||
| 172 | M1200004 | Cotter Pin K |
|
- | |||||
| 182 | M1200202 | Pin K |
|
- | |||||
| 193 | 12142001 | Tube-drain |
|
- | |||||
| 222 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.72 | ||||
| 233 | M0102303 | Clamp |
|
- | |||||
| 353 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 462 | M0204339 | Screw Bolt K |
|
- | |||||
| 473 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 521 | 10496107 | Kit,hinge Lh Btm(w) |
|
- | |||||
| 531 | 10496113 | Hinge, R Btm Wh E-ct |
|
- | |||||
| 901 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 1103 | 12021201 | Baffle, Air |
|
- | |||||
| 1112 | 10093301 | Screw, Adj Roller |
|
- | |||||
| 1201 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 1402 | M0274067 | Washer, Nylon |
|
- | |||||
| 3701 | 12146901 | Brkt-adj Hinge |
|
- | |||||
| 4002 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 4012 | B8386608 | Gasket |
|
- | |||||
| 4042 | B8386607 | Gasket (1=1ft.) |
|
- | |||||
| 4052 | 10893802 | Shield, Evap |
|
- | |||||
| 4062 | D7850202 | Drip Tray Pnt. |
|
- | |||||
| 4072 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 4082 | 10098801 | Rivet |
|
- | |||||
| 4102 | R0181181 | Kit,dr Closure (Replaces: 12113501) |
|
Immediately | $ 7.55 | ||||
| 4132 | M0580002 | Grommet A |
|
- | |||||
| 4142 | WPA3073101 | Bulb 120v. 40w. (Replaces: A3079001) |
|
Immediately | $ 12.72 | ||||
| 4152 | 10527401 | Clip, Evap |
|
- | |||||
| 4162 | 10623003 | Clip, Evaporator |
|
- | |||||
| 4172 | 10890202 | Evap Fan Shroud |
|
- | |||||
| 4182 | 10281601 | Socket-light |
|
- | |||||
| 4312 | B8387701 | Shim, Door Closure |
|
- | |||||
| 4322 | B8387702 | Shim, Door Closure |
|
- | |||||
| 4332 | W11227370 | Screw, Tc (Replaces: M0220431) |
|
Immediately | $ 14.91 | ||||
| 4715 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 4815 | A3030361 | Gasket |
|
- | |||||
| 7021 | 12146701 | Shim-bot Hinge |
|
- | |||||
| 7031 | 12146702 | Shim-bot Hinge |
|
- |
