SELECT A DIAGRAM
01 - Top And Console Parts

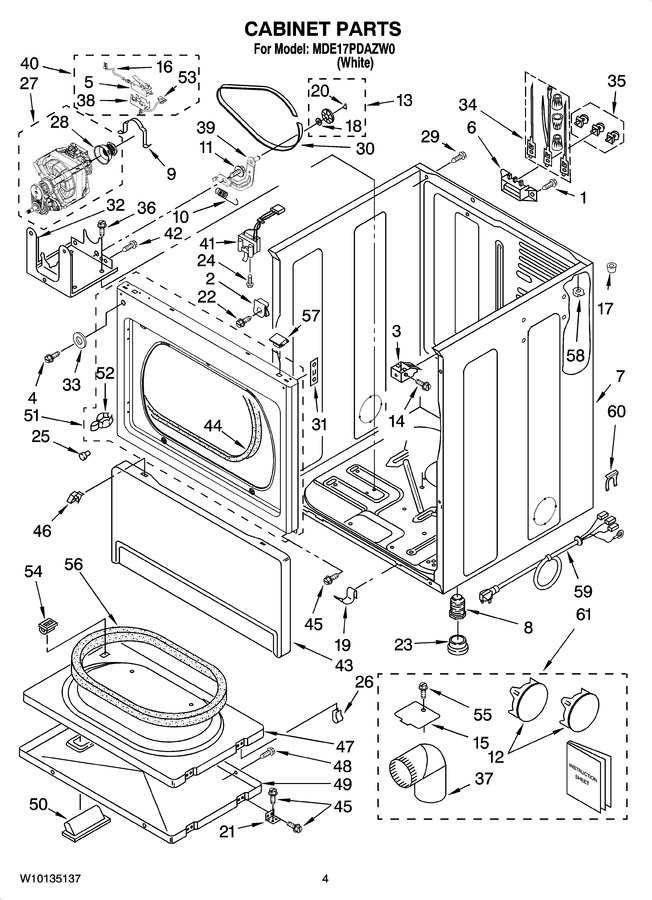

02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 2 | WPW10131123 | Nut, 8 U-type (Replaces: W10131123) |
|
$ 7.71 | |||||
| 3 | 3391846 | Clip, Front Panel (2) |
|
$ 21.15 | |||||
| 4 | WP3400077 | Screw, 10-16 X 1/2 (Replaces: 3400077) |
|
$ 6.94 | |||||
| 5 | WP8564010 | Switch, Broken Belt (Replaces: 8564010) |
|
$ 99.15 | |||||
| 6 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 23.02 | |||||
| 7 | W11417441 | Cabinet (Replaces: 8310656) |
|
$ 419.21 | |||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 8 | 49621 | Foot, Dryer (plastic) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.83 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 24.57 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.02 | |||||
| 12 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 681615 | Screw, 10-16 X 1 (Replaces: 3391915) |
|
$ 13.88 | |||||
| 15 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.96 | |||||
| 16 | 8539891 | Wire, Belt Switch |
|
- | |||||
| 17 | 356674 | Cone-wedge |
|
$ 33.19 | |||||
| 18 | WP233520 | Washer, Thurst (Replaces: 233520) |
|
Immediately | $ 7.96 | ||||
| 19 | WP297092 | Clip (2) (Replaces: 297092) |
|
Immediately | $ 8.24 | ||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | W11175815 | Hinge And Pin (2) (Replaces: 3389247) |
|
$ 81.41 | |||||
| 22 | WPW10131119 | Screw, 8-18 X 5/16 (Replaces: W10131119) |
|
$ 6.95 | |||||
| 23 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.82 | |||||
| 24 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.70 | |||||
| 25 | 693152 | Bumper |
|
$ 10.96 | |||||
| 26 | 3389249 | Nut, ``u`` (4) |
|
- | |||||
| 27 | W11234001 | Motor Assembly (60 Hz.) (Replaces: W10139766) |
|
Immediately | $ 413.21 | ||||
| 28 | WP8066184 | Pulley (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 29 | W10850756 | Screw, 10-32 X 1/2 (Replaces: 8533974) |
|
$ 7.76 | |||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | WP3390902 | Clip, Door Hinge (2) (Replaces: 3390902) |
|
$ 11.11 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 125.84 | |||||
| 33 | W11089212 | Washer (Replaces: 3392186) |
|
$ 9.67 | |||||
| 34 | 279318 | Terminal, Brass & Tinned (3) (includes Ill. 35) |
|
Immediately | $ 100.99 | ||||
| 35 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 47.37 | ||||
| 36 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 3390663) |
|
Immediately | $ 7.85 | ||||
| 37 | 279731 | 4`` - 90 Elbow |
|
- | |||||
| 38 | 8564011 | Bracket-switch |
|
$ 18.17 | |||||
| 39 | WPW10344192 | Bracket, Idler (Replaces: W10141380) |
|
Immediately | $ 90.07 | ||||
| 40 | W11247665 | Switch, Assembly (Replaces: W10155571) |
|
$ 26.40 | |||||
| 41 | WPW10237959 | Door Switch Assembly (Replaces: 3406109) |
|
Immediately | $ 55.64 | ||||
| 42 | 777849 | Screw, 6-20 X 1.00 (Replaces: W10002600) |
|
$ 7.01 | |||||
| 43 | WP3406797 | Panel, Toe (Replaces: 697215) |
|
$ 238.33 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.57 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 47 | 280083 | Door, Rear (Replaces: 3392563) |
|
$ 287.02 | |||||
| 48 | WP694091 | Screw, 8-18 X 3/8 (Replaces: 694091) |
|
$ 7.19 | |||||
| 49 | W11663440 | Door, Front (Replaces: 3387872) |
|
$ 259.37 | |||||
| 50 | 3389522 | Handle, Door |
|
$ 77.90 | |||||
| 51 | 3393081 | Front Panel |
|
- | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 53 | 8539892 | Wire, Jumper |
|
- | |||||
| 54 | 279570 | Catch, Door Assembly (Replaces: 3392538) |
|
Immediately | $ 8.89 | ||||
| 55 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 56 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 130.60 | |||||
| 57 | WP345670 | Lock, Top (Replaces: 345670) |
|
Immediately | $ 7.70 | ||||
| 58 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 8.14 | |||||
| 59 | W11095079 | Cord, Power (Replaces: 3394208) |
|
Immediately | $ 131.66 | ||||
| 60 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.40 | ||||
| 61 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) White (Replaces: 279818) |
|
Immediately | $ 76.65 |
