SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts

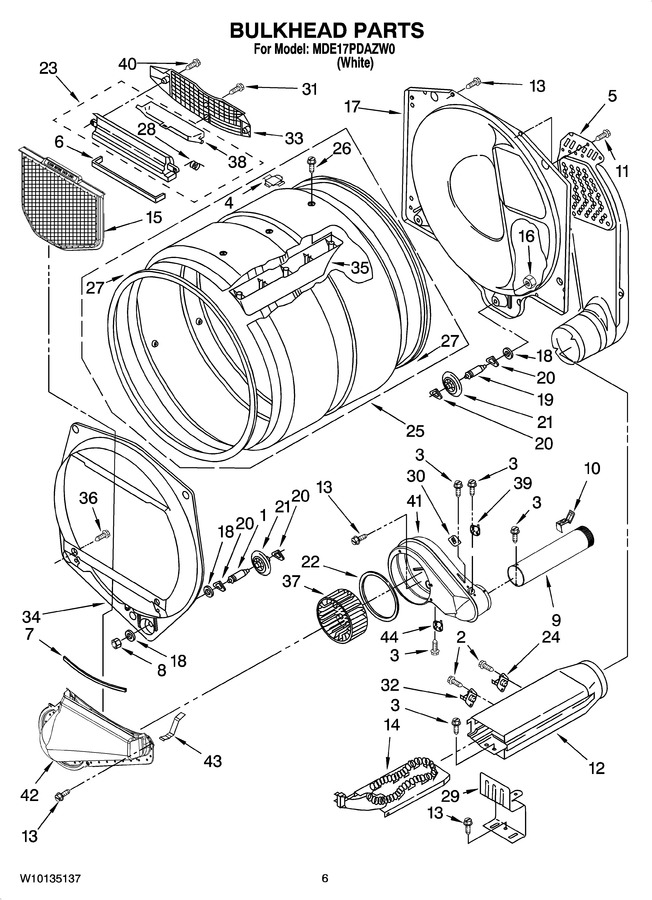

03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 62.21 | ||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 3 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 4 | 8066086 | Drum, Hole Plug |
|
$ 10.75 | |||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 311.72 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.97 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.97 | ||||
| 8 | W11812294 | Nut-3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 12.16 | |||||
| 9 | 279936 | Exhaust Pipe (Replaces: 8066224) |
|
$ 146.84 | |||||
| 10 | W11684573 | Clip (Replaces: 8572105) |
|
$ 7.78 | |||||
| 11 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 12 | W10802681 | Box, Heater (Replaces: 3392537) |
|
Immediately | $ 129.67 | ||||
| 13 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 14 | W11676492 | Element, Heater (Replaces: W10157669) |
|
$ 249.99 | |||||
| 15 | W10120998 | Lint Screen (Replaces: W10049370) |
|
$ 67.16 | |||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 8.49 | ||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 350.11 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 14.03 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 28.50 | ||||
| 22 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.88 | ||||
| 23 | W11129408 | Housing, Outlet (Replaces: 8563755) |
|
Immediately | $ 53.28 | ||||
| 24 | 279973 | Thermal Cut-off (includes Item 32) (Replaces: 8318314) |
|
Immediately | $ 75.60 | ||||
| 25 | W10545923 | Drum Complete (Replaces: 8318215) |
|
$ 436.76 | |||||
| 26 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: W10109200) |
|
Immediately | $ 8.00 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 70.82 | ||||
| 28 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.59 | |||||
| 29 | 8066099 | Bracket, Heater Box |
|
$ 24.35 | |||||
| 30 | WP3392519 | Thermal Fuse (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 31 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 32 | WP3391914 | Thermostat 295 F (Replaces: 3391914) |
|
Immediately | $ 119.47 | ||||
| 33 | W11086603 | Grill, Outlet (Replaces: 8563756) |
|
Immediately | $ 35.14 | ||||
| 34 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 208.03 | |||||
| 35 | W11782150 | Baffle, Drum (3) (Replaces: 697693) |
|
Immediately | $ 91.02 | ||||
| 36 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 37 | WPW10349492 | Wheel, Blower (Replaces: W10168564) |
|
Immediately | $ 120.33 | ||||
| 38 | W11222846 | Door, Lint Screen (Replaces: 8563758) |
|
Immediately | $ 203.72 | ||||
| 39 | WPW10131836 | Thermostat 140 F Cycling (Replaces: W10131836) |
|
$ 158.56 | |||||
| 40 | WP3387230 | Screw, 10-16 X 3/4 (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 41 | W11744012 | Housing, Blower (Replaces: W10135254) |
|
$ 115.95 | |||||
| 42 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 207.12 | |||||
| 43 | WP8066208 | Clip, Spring (Replaces: 8066208) |
|
$ 8.17 | |||||
| 44 | W10133284 | Thermostat 155 F Electronic |
|
$ 102.05 | |||||
| W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 11.75 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 4392067 | Kit, Dryer Repair |
|
Immediately | $ 62.25 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- |
