SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts

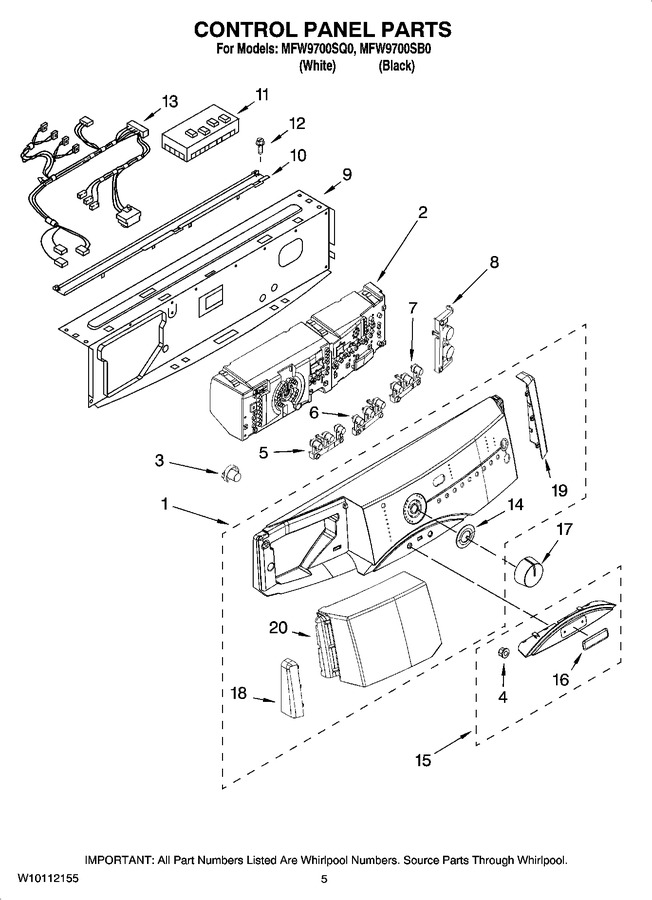

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8183056		Panel, Control (white)		Appelez-nous	-
1	8183071		Panel, Control (black)		Appelez-nous	-
2	8182150		User Interface				$ 278.39
3	8183077		Button, Power (silver (for Black Model))		Appelez-nous	-
3	8182601		Button, Power (silver (for White Model))				$ 32.30
4	WP2004333		Pal-nut   (Replaces: 8182183)				$ 11.24
5	8183080		Button Set, Left (silver)				$ 85.68
5	8182604		Button Set, Left (white)				$ 53.63
6	8183079		Button Set, Middle (silver)		Appelez-nous	-
6	8182603		Button Set, Middle (white)		Appelez-nous	-
7	8182602		Button Set, Right (white)				$ 44.31
7	8183078		Button Set, Right (silver)		Appelez-nous	-
8	8183081		Button Set, Start (silver (for Black Model))		Appelez-nous	-
8	8182180		Button Set, Start (silver (for White Model))				$ 51.41
9	8182224		Brace, Front Top		Appelez-nous	-
10	8181640		Channel, Water		Appelez-nous	-
11	8182774		Microcomputer, Machine Control		Appelez-nous	-
12	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 8.28
13	8182212		Harness, Wiring (main)				$ 139.63
14	8182171		Bezel, Knob		Appelez-nous	-
15	8183075		Overlay, Door (tuscan Silver)		Appelez-nous	-
15	8183058		Overlay, Door (aluminum)		Appelez-nous	-
16	8183059		Medallion		Appelez-nous	-
17	8182175		Knob, Control (aluminum)		Appelez-nous	-
17	8183076		Knob, Control (tuscan Silver)		Appelez-nous	-
18	8182599		Endcap, Left (white)		Appelez-nous	-
18	8183073		Endcap, Left (black)		Appelez-nous	-
19	8183074		Endcap, Right (black)		Appelez-nous	-
19	8182600		Endcap, Right (white)		Appelez-nous	-
20	8183072		Handle, Drawer (includes Item 18) (black)		Appelez-nous	-
20	8183057		Handle, Drawer (includes Item 18) (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
