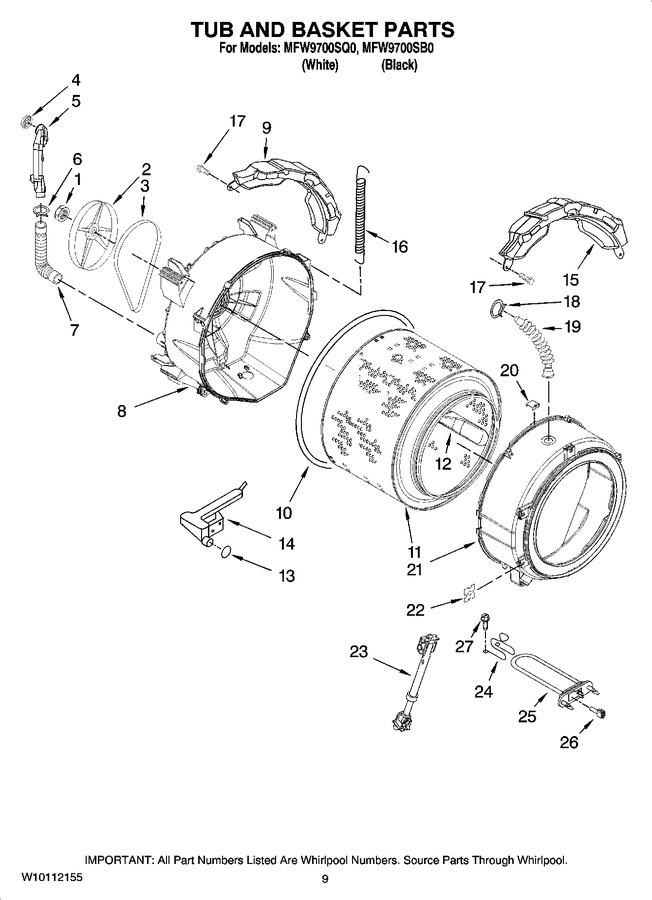

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10283361		Nut, Pulley   (Replaces: 8182132)			Immediately	$ 83.07
2	WP8182650		Pulley   (Replaces: 8182650)			Immediately	$ 197.07
3	WPW10388414		Belt   (Replaces: 8182633)			Immediately	$ 53.86
4	8183030		Grid, Ventilation		Appelez-nous	-
5	8181744		Pipe, Ventilation				$ 82.50
6	8540010		Clamp   (Replaces: 8181746)				$ 11.74
7	WP8181743		Hose, Exhaust   (Replaces: 8181743)				$ 113.79
8	W10772618		Tub, Rear   (Replaces: 8181666)				$ 624.24
9	8181644		Counterweight, Rear				$ 65.08
10	W10772613		Gasket, Tub   (Replaces: 8181673)				$ 435.23
11	8182247		Basket		Appelez-nous	-
12	WP8182233		Baffle, Basket   (Replaces: 8182233)			Immediately	$ 69.18
13	WPW10250553		O-ring   (Replaces: 8181748)				$ 7.55
14	8181731		Airtrap				$ 29.07
15	WPW10008880		Counterweight, Front (2)   (Replaces: 8181645)				$ 184.72
16	W10135004		Spring, Suspension   (Replaces: 8182814)			Immediately	$ 87.78
17	8181647		Bolt		Appelez-nous	-
18	WP3367052		Clamp   (Replaces: 8181742)				$ 9.10
19	WP8181794		Hose, Tub To Dispenser   (Replaces: 8181794)				$ 40.18
20	WP8540092		Clamp   (Replaces: 8181667)				$ 7.97
21	W10772607		Tub, Front   (Replaces: 8181665)				$ 545.91
22	WP8182512		Nut, Push-in   (Replaces: 8181648)			Immediately	$ 7.30
23	W10822553		Shock Absorber   (Replaces: 8182812)			Immediately	$ 83.35
24	W10250558		Clamp, Heating Element   (Replaces: 8181686)				$ 13.03
25	WPW10426377		Element, Heating   (Replaces: 8182666)				$ 319.00
26	WPW10467289		Ntc   (Replaces: 8181705)			Immediately	$ 47.80
27	W11230114		Screw   (Replaces: 8181687)				$ 13.94
27	WPY706189		Screw, Baffle Mounting   (Replaces: 8182126)			Immediately	$ 7.55
