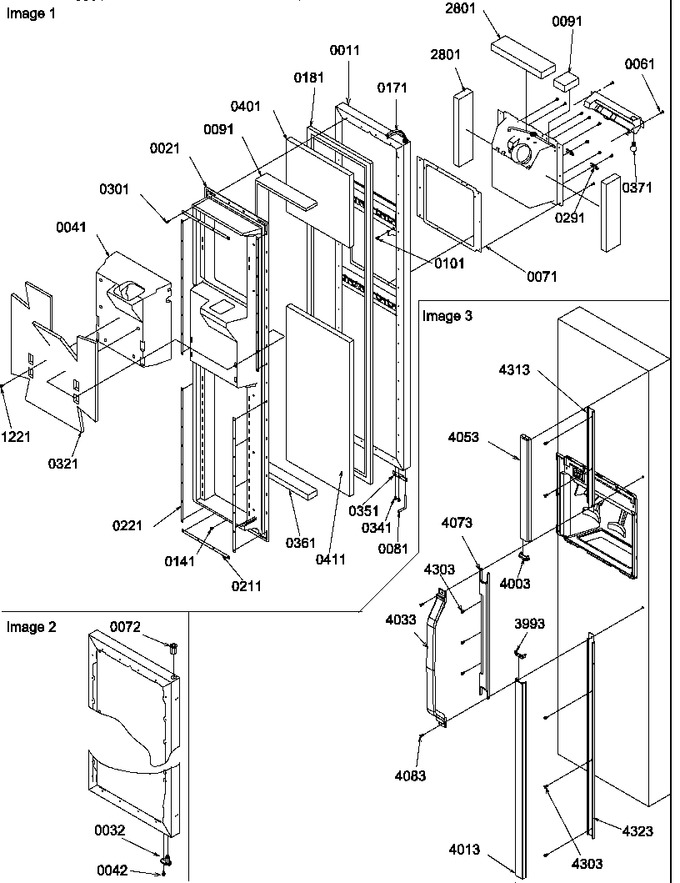

SRD25S3E (BOM: P1190325W E) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
11	10881401E	Assy Frz Dr Fm	Appelez-nous	-
21	10860901	Liner-i&w Fz Dr	Appelez-nous	-
32	R0181181	Closure-e Door (Replaces: 12113203)		Immediately	$ 7.55
41	10870301	Insul.-i & W Cavity	Appelez-nous	-
42	WP98165	Screw, Sm (Replaces: M0211018)			$ 8.57
61	M0216517	Screw	Appelez-nous	-
71	D7791003	Gasket Cavity	Appelez-nous	-
72	C8964402	Bushing, Top	Appelez-nous	-
81	WPB5705307	Tube, Plastic , 68`` (Replaces: B5705321)			$ 13.05
91	B0523562	Insul. By The Ft.	Appelez-nous	-
101	WP489399	Screw (Replaces: M0232903)			$ 7.30
141	M0226705	Screw, Shoulder	Appelez-nous	-
171	10952104	Harness-fz Door	Appelez-nous	-
181	10359711	Gasket Door Frz	Appelez-nous	-
211	C8982801	Retainer, Door Liner	Appelez-nous	-
221	D7828601	Retainer, Door Liner	Appelez-nous	-
291	C8992901	Clip	Appelez-nous	-
301	M0219730	Screw			$ 7.65
321	10941501	Insul, Batt	Appelez-nous	-
341	WP98165	Screw, Sm (Replaces: M0211018)			$ 8.57
351	C8972403	Stop, Door (blk)	Appelez-nous	-
361	876370	Insulation Bott (1= 1ft) (Replaces: B0523588)			$ 243.14
371	W10857122	Light Bulb (Replaces: M0360001)			$ 14.52
401	12016901	Insul, Batt (ref. Door)	Appelez-nous	-
411	12016902	Insul, Batt (ref. Door)	Appelez-nous	-
1221	M0311602	Plug, Button (white)	Appelez-nous	-
2801	B0523596	Insul. By The Ft.	Appelez-nous	-
3993	10953116	Insert, Trim (black)	Appelez-nous	-
4003	10953115	Insert, Trim (black)	Appelez-nous	-
4013	10810511	Trim, Bottom Door Ebony	Appelez-nous	-
4033	12139306	Handle, Door (black)	Appelez-nous	-
4053	10810311	Trim-e Top Fz Dr	Appelez-nous	-
4073	10810603	Trim- E Ctr I&w Dr	Appelez-nous	-
4083	R9800670	Screw, Tf (Replaces: M0238731)			$ 10.58
4303	M0216517	Screw	Appelez-nous	-
4313	10852212	Ret-up Fz Trim	Appelez-nous	-
4323	10852215	Ret-lw Fz Trim	Appelez-nous	-
