Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 A1061501 Pin, Chute Door Appelez-nous -
12 10323305 Bracket, Elec Mtg Appelez-nous -
21 A1061601 Retainer, Ice Arm Appelez-nous -
22 10533002 Switch, Limit (water Disp) Appelez-nous -
23 M0117303 Clip, Grille Special Order $ 5.65

31 B8380701 Insulation, Chute Door Appelez-nous -
32 WP10533003 Switch, Limit (ice Disp)   (Replaces: 10533003) Special Order $ 73.29

41 B8380801 Brkt-chute Door Appelez-nous -
42 M0237809 Screw, T.f. Appelez-nous -
51 B8380901 Spring,chute Door Special Order $ 7.18

61 B8385401 Spring, Return Appelez-nous -
72 10166101 Switch-light Cavity Special Order $ 6.49

81 W10819546 Clip, Facade   (Replaces: B8390302) Special Order $ 13.14

82 10131702 Socket, Light Appelez-nous -
91 C8972501 Retainer Door Delay Appelez-nous -
92 D7726590 Wire-jumper Appelez-nous -
101 C8973602 Delay, Door Special Order $ 49.84

102 D7726593 Wire Jumper Appelez-nous -
111 10876003 Cavity, Disp (black) Appelez-nous -
112 10533001 Switch, Limit Special Order $ 14.43

121 10246601 Kit,chute Dr No.3 Appelez-nous -
122 D7726592 Wire-jumper Appelez-nous -
131 12102104 Arm, Ice Disp. Special Order $ 26.54

132 B5667304 Wire Clip Appelez-nous -
141 10872104 Arm,wtr Disp B Appelez-nous -
142 10131801 Cover-elect Brkt Appelez-nous -
151 10882106 Heater-cavity Appelez-nous -
161 M0211116 Screw, Sm Appelez-nous -
162 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

172 D7854104 Switch-photosensitive Appelez-nous -
182 10166002 Switch-crushed/cube Appelez-nous -
252 W11084238 Screw   (Replaces: M0234001) Appelez-nous -
272 A3030365 Gasket Appelez-nous -
433 10870801 Shelf, Ice Cream Appelez-nous -
453 12321806 Kit, Toe Grille (blk) Appelez-nous -
501 A3030357 Gasket Appelez-nous -
823 10986103 Facade-e Disp Appelez-nous -
833 M0219601 Screw Appelez-nous -
883 12043808 Cap-black Switch Appelez-nous -
3503 10984612 Insert, Facade (black) Appelez-nous -
5003 10504101 Chute, Ice Appelez-nous -
5013 12044501 Gasket-ice Chute Appelez-nous -
NI R0156692 Kit,chute Dr No.3 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

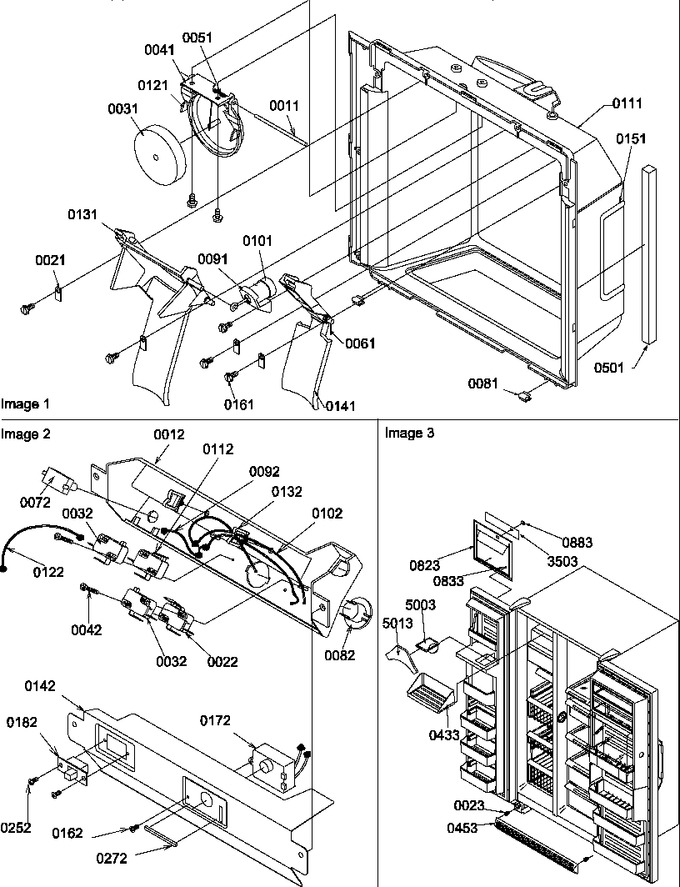

Diagram for SRD25S3E (BOM: P1190325W E)
