Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10876202L Assy Frz Dr Fm Appelez-nous -
21 10861001 Liner-i&w Fz Dr Appelez-nous -
32 R0181181 Closure-e Door   (Replaces: 12113203) In-Stock Immediately $ 7.55

35 C8992901 Clip Appelez-nous -
41 10872801 Insul-i&w Cavity Appelez-nous -
42 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

45 M0219730 Screw Special Order $ 7.65

61 M0216517 Screw Appelez-nous -
62 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

65 10940701 Insul-disp Batt Appelez-nous -
71 D7791003 Gasket Cavity Appelez-nous -
75 W10857122 Light Bulb   (Replaces: M0360001) Special Order $ 14.52

81 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

91 B0523563 Insulation Ft. K Appelez-nous -
95 12016905 Insul, Batt Appelez-nous -
101 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

105 12016906 Insul, Batt Appelez-nous -
122 M0310338 Plug Button Almond Appelez-nous -
141 M0226705 Screw, Shoulder Appelez-nous -
152 10161804 Stop-l Door Appelez-nous -
153 10953114 Insert, Trim (almond) Appelez-nous -
163 10953113 Insert, Door Trim Appelez-nous -
171 10952104 Harness-fz Door Appelez-nous -
173 10810509 Trim, Bottom Door Appelez-nous -
181 10359709 Gasket (w Frz Dr) Appelez-nous -
183 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

193 12139305 Handle, Door (almond) Appelez-nous -
197 M0311602 Plug, Button (white) Appelez-nous -
207 M0216517 Screw Appelez-nous -
211 C8982801 Retainer, Door Liner Appelez-nous -
213 10810309 Trim-l Top Fz Dr Appelez-nous -
217 10852212 Ret-up Fz Trim Appelez-nous -
221 D7828601 Retainer, Door Liner Appelez-nous -
227 10852215 Ret-lw Fz Trim Appelez-nous -
233 10810602 Trim, L Ctr I & W Dr Appelez-nous -
241 B0523596 Insul. By The Ft. Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

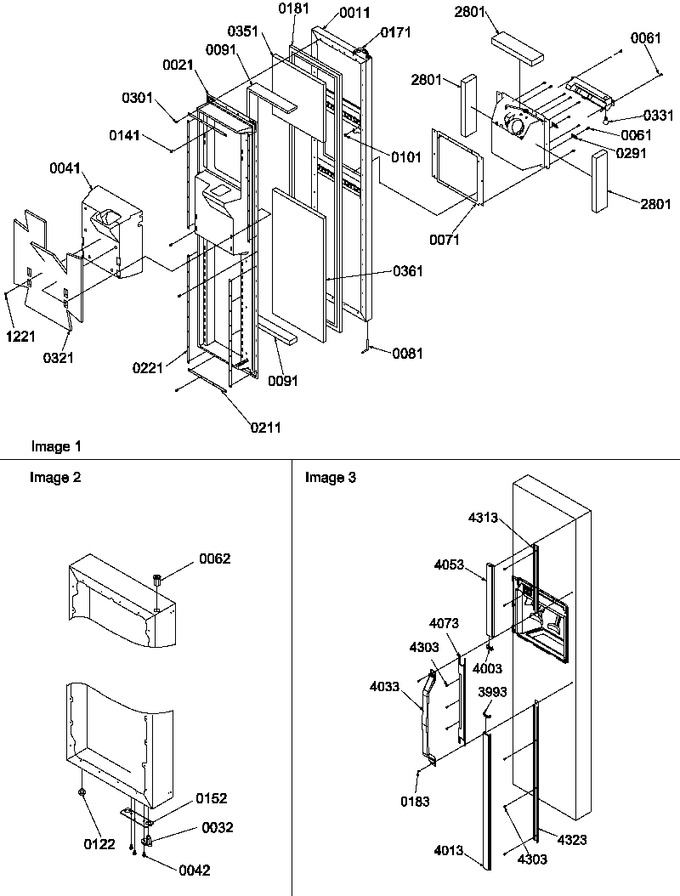

Diagram for SRD27S2L (BOM: P1190321W L)
