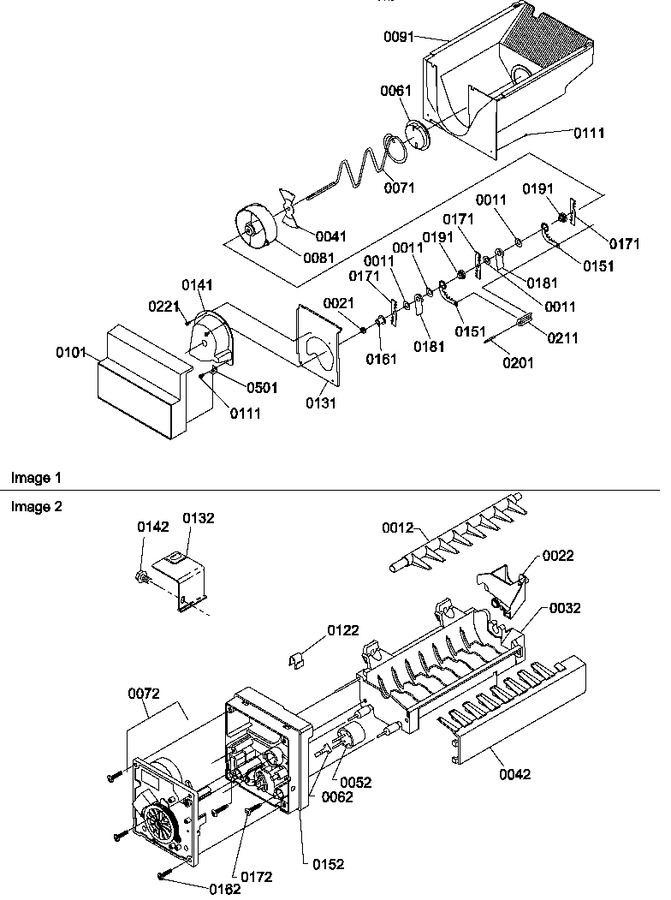

SRD27S2L (BOM: P1190321W L) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
11	10275101	Washer, Waved	Appelez-nous	-
12	WP627843	Ejector (Replaces: R0183119)			$ 87.78
21	WPM0223101	Nut, Locking (Replaces: M0223101)			$ 8.06
22	WP628356	Cup, Water Fill/bearing (Replaces: R0156839)			$ 53.75
32	D7824706Q	Assy, Mold & Heater (Replaces: R0156669)		Immediately	$ 167.35
41	10113801	Bar, Crsh Ice Bucket			$ 4.96
42	WP2182124	Stripper, Ice (Replaces: R0183120)			$ 90.35
52	WP627985	N/a See Notes-thermostat (Replaces: R0161060)			$ 114.64
61	WPD7749401	Cap, Helix End (Replaces: D7749401)			$ 29.01
62	WP2315522	Retainer (Replaces: R0191094)			$ 11.60
71	10114401	Agitator, Ice			$ 107.74
72	W10190935	Module & Mtr Assy,120v/60hz (Replaces: R0167203)		Immediately	$ 110.07
81	10114703	Wheel, Crsh Ice	Appelez-nous	-
91	10111905	Bucket, Crushed Ice			$ 104.60
101	10870901	Front-ci Bucket	Appelez-nous	-
111	67006425	Screw, Sm (Replaces: M0238642)		Immediately	$ 7.30
122	WP628379	Clip, Thermal Fuse (Replaces: 10319801)			$ 11.10
131	10115001	Front, Ice Crusher			$ 25.55
132	B8391802	Bracket, I/m	Appelez-nous	-
141	10114003	Cover, Blade	Appelez-nous	-
142	67006425	Screw-sm No.8-1/2lg (Replaces: M0211017)		Immediately	$ 7.30
151	10114601	Blade, Static	Appelez-nous	-
152	WP2195914	Support (Replaces: R0183121)			$ 109.80
161	10113901	Spacer, Cover	Appelez-nous	-
162	R0186041	Screw	Appelez-nous	-
171	10114501	Blade, Rotating	Appelez-nous	-
172	R0186040	Screw	Appelez-nous	-
181	10275201	Damper, Ice	Appelez-nous	-
191	10114301	Washer Stepped	Appelez-nous	-
201	M1200108	Pin, Roll	Appelez-nous	-
211	10114101	Anchor, Blade	Appelez-nous	-
221	M0231704	Screw, Tf	Appelez-nous	-
245	10894901	Brkt, Cover Mtg.	Appelez-nous	-
NI	10834701	Label, Im	Appelez-nous	-
