01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

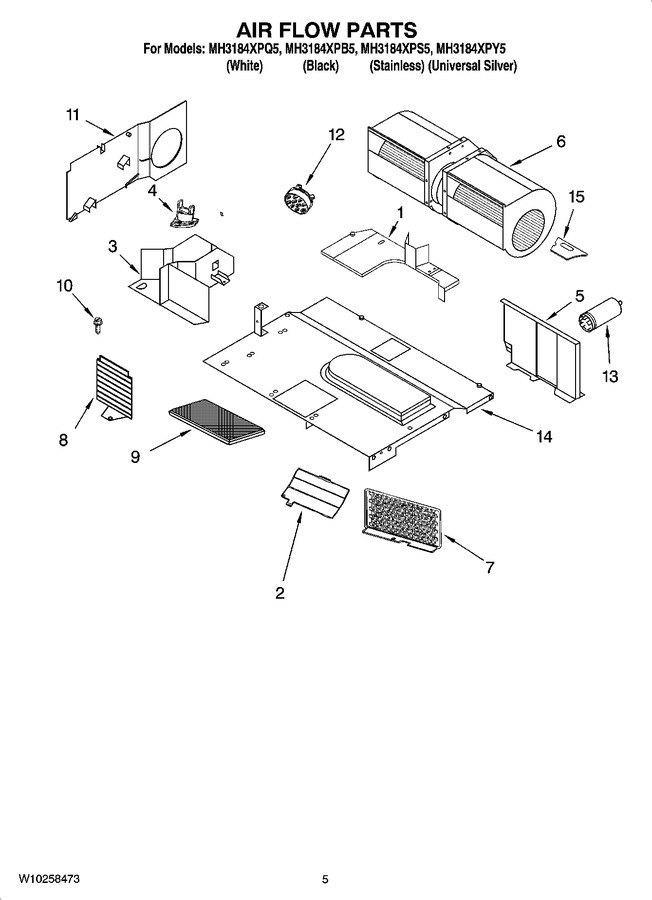

| 1 | W10258595 | Deflector, Air |
|
- | |||||
| 2 | 8206453 | Cover, Lamp |
|
- | |||||
| 3 | 8205368 | Duct, Air |
|
- | |||||
| 4 | 8183703 | Thermostat |
|
- | |||||
| 5 | 8205354 | Air Guide, Back |
|
- | |||||
| 6 | W10117942 | Motor, Fan Assy |
|
$ 180.63 | |||||
| 7 | 8205355 | Shield |
|
- | |||||
| 8 | 8206460 | Shield |
|
- | |||||
| 9 | 8205146A | Filter, Charcoal (Replaces: 8205146) |
|
$ 24.59 | |||||
| 10 | 8169474 | Screw |
|
$ 8.51 | |||||
| 11 | 8205352 | Air Guide (right) |
|
- | |||||
| 11 | 8205367 | Air Guide (left) |
|
- | |||||
| 12 | 8206446 | Humidity, Sensor |
|
$ 84.51 | |||||
| 13 | 8206624 | Filter |
|
$ 38.80 | |||||
| 14 | 8205351 | Base Plate, Air Guide |
|
- | |||||
| 15 | W10139750 | Socket, Motor Wire |
|
- |
