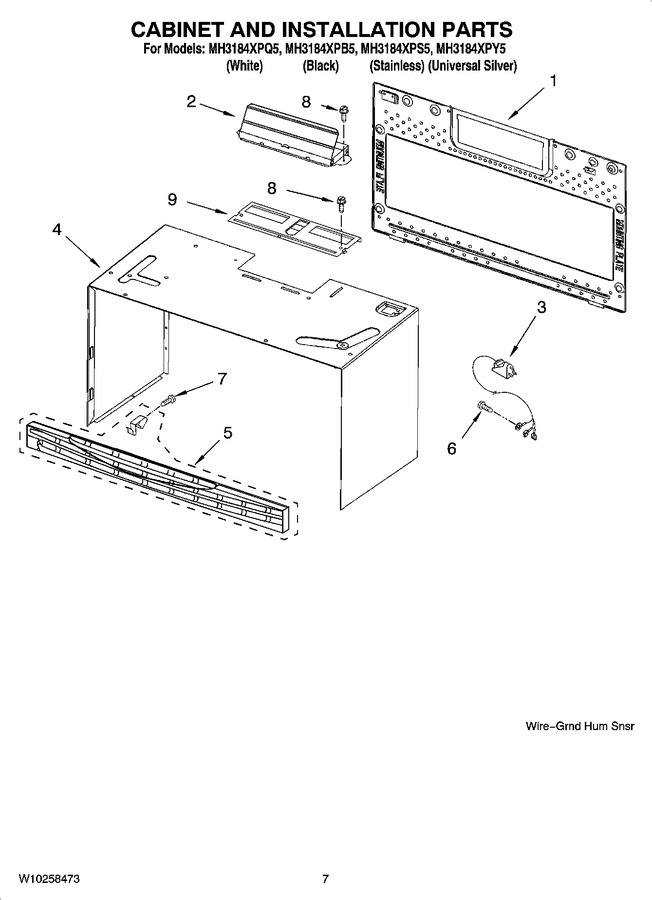

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10269225 | Plate, Mounting (Replaces: 8206315) |
|
$ 80.73 | |||||
| 2 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 73.04 | ||||
| 3 | W10708076 | Cord, Power (Replaces: 8205808) |
|
$ 21.56 | |||||
| 4 | W10258594 | Case, Outer (black) |
|
- | |||||
| 4 | W10258593 | Case, Outer (white) |
|
- | |||||
| 5 | W10450172 | Grille, Vent (white) (Replaces: 8205214) |
|
$ 81.62 | |||||
| 5 | 8206193 | Grille, Vent (universal Silver) |
|
- | |||||
| 5 | W10450187 | Grille, Vent (black) (Replaces: 8205215) |
|
Immediately | $ 81.62 | ||||
| 6 | 4393836 | Screw |
|
- | |||||
| 7 | 8169475 | Screw |
|
$ 6.64 | |||||
| 8 | 4393472 | Screw |
|
- | |||||
| 9 | 8206452 | Cover, Fan Mtr |
|
- | |||||
| W10259142 | Harns-wire (main Filter) |
|
- | ||||||
| W10114360 | Harns-wire, Grill |
|
- | ||||||
| W10114264 | Cavity Thrmst 1-2 |
|
- | ||||||
| W10114265 | Cavity Thrmst 2-3 |
|
- | ||||||
| W10256914 | Socket-lmp |
|
- | ||||||
| 8205948 | Installation, Hardware |
|
$ 26.90 | ||||||
| 8184731 | Template, Upper |
|
- | ||||||
| WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 13.35 | |||||
| W10258600 | Main Harness |
|
- | ||||||
| W10110600 | H.v. Wire Assy |
|
- | ||||||
| W10114361 | Wire, Stirrer |
|
- | ||||||
| W10114263 | Inverter, Grnd |
|
- | ||||||
| 8206185 | Wire-grnd Hum Snsr |
|
- | ||||||
| W10110601 | Pcba |
|
- | ||||||
| 8205022 | P4 To Cn151 |
|
- | ||||||
| W10615910 | P2 To 1100w Inv (Replaces: 8205014) |
|
$ 246.98 | ||||||
| 8205021 | P27 To Cn153 |
|
- |
