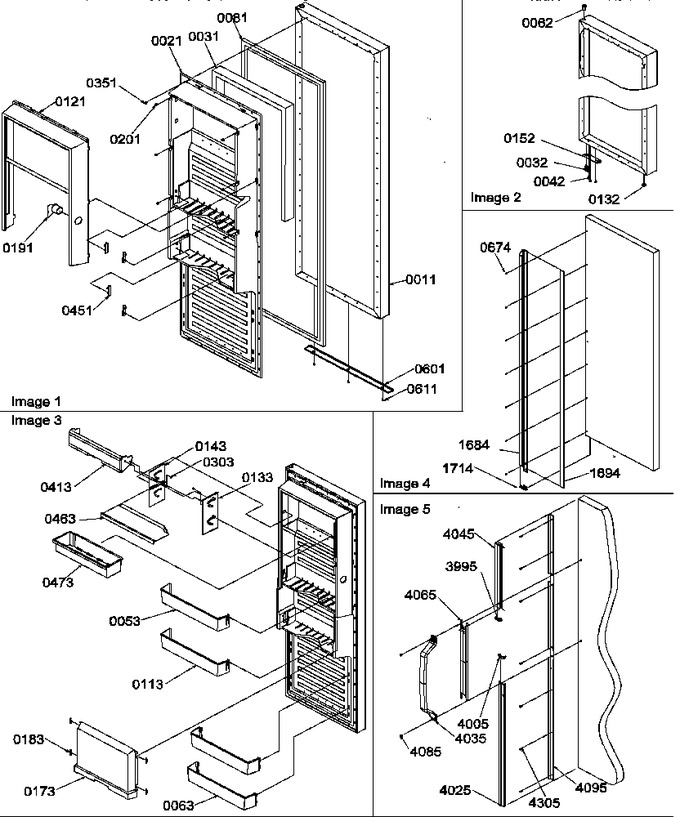

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10876105W		Assy, Ref Dr Fm (white)		Appelez-nous	-
21	10861401		Liner-ref Dr		Appelez-nous	-
31	B0523563		Insulation Ft. K		Appelez-nous	-
32	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.55
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
53	10111007		Bucket-igloo		Appelez-nous	-
62	10961001		Bushing, Door (wht)		Appelez-nous	-
63	10521814		Shelf-ref Door		Appelez-nous	-
81	10359701		Gasket, Door (w Ref)		Appelez-nous	-
113	10520410		Shelf, Chiller		Appelez-nous	-
121	10154901		Frame-igloo Dairy		Appelez-nous	-
132	M0310308		Plug, Button (wht)		Appelez-nous	-
133	12102905		Track, Dairy Door		Appelez-nous	-
143	12102906		Track, Dairy Door		Appelez-nous	-
152	10161803		Door Stop		Appelez-nous	-
173	10111809		Door, Igloo		Appelez-nous	-
183	10162101		Glide-igloo Door		Appelez-nous	-
191	10165001		Tunnel-air		Appelez-nous	-
201	10165101		Clip-tubular		Appelez-nous	-
303	M0500706		Seal-o Ring		Appelez-nous	-
351	M0219730		Screw				$ 7.65
413	12103001		Door-dairy		Appelez-nous	-
451	10202001		Clip, Retainer		Appelez-nous	-
463	10893201		Shelf, Dairy		Appelez-nous	-
473	10883902		Bucket-beverage		Appelez-nous	-
601	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
611	10980109		Trim-w Ref Bot		Appelez-nous	-
3995	10953112		Insert, Trim(white)		Appelez-nous	-
4005	10953111		Insert, Trim(white)		Appelez-nous	-
4025	10810508		Trim, Bottom Door W Ref		Appelez-nous	-
4035	10809007		Kit, Sxs Hndl (w)		Appelez-nous	-
4045	10810308		Trim-w Top Ref Dr		Appelez-nous	-
4065	10810401		Trim-w Ctr Dr		Appelez-nous	-
4085	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
4095	10852214		Retainer-ref Trim		Appelez-nous	-
4305	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
