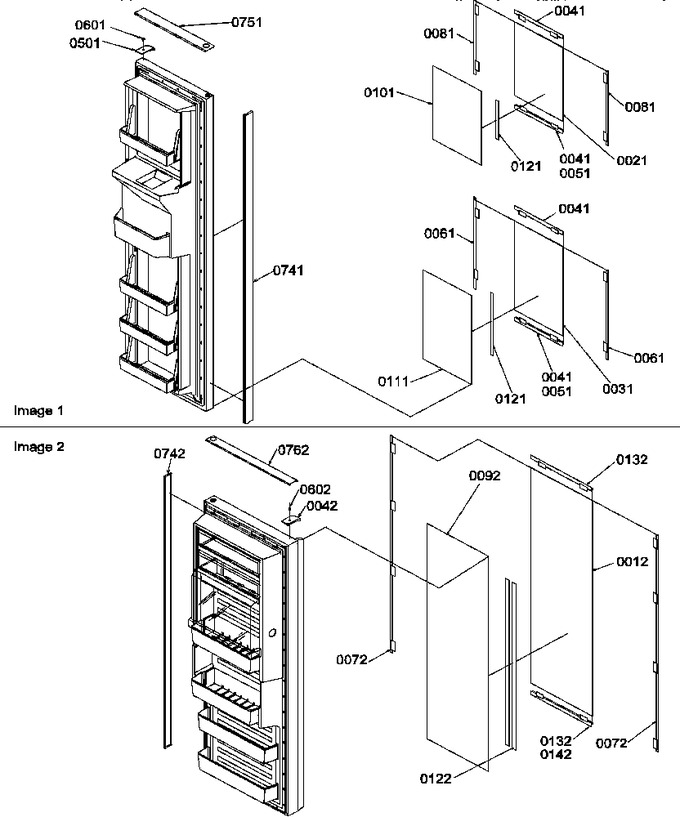

SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelf, And Crisper Assemblies


04 - Drain System, Rollers, And Evap Assy


05 - Fz Door


06 - Fz Shelves And Light


07 - Ice & Water Cav/elec Brkt & Toe Grille


08 - Ice Bucket Auger And Ice Maker Parts


09 - Ice Maker/control Assy


10 - Machine Compartment


11 - Ref Door


12 - Ref/fz Door Trim And Panels


13 - Ref/fz Shelves, Lights, And Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10096965		Panel-white		Appelez-nous	-
21	10096966		Panel-white		Appelez-nous	-
31	10096967		Panel-white		Appelez-nous	-
41	B8391251		Retainer-w Hz Fz		Appelez-nous	-
61	B5623488		Retainer-w Vrt Fz		Appelez-nous	-
72	B5623487		Retainer-w Vrt Ref		Appelez-nous	-
81	B5623489		Retainer-w Vrt Fz		Appelez-nous	-
92	10234621		Spacer, Pnl Ref Dr		Appelez-nous	-
101	10234622		Spacer-fz Up Panel		Appelez-nous	-
111	10234623		Spacer-fz Lw Panel		Appelez-nous	-
121	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
122	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
132	B8391250		Retainer-w Hz Ref		Appelez-nous	-
741	10133103		Trim-w Vert		Appelez-nous	-
742	10133103		Trim-w Vert		Appelez-nous	-
751	10133406		Trim, E Frz Top		Appelez-nous	-
762	10133207		Trim, E Ref Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
