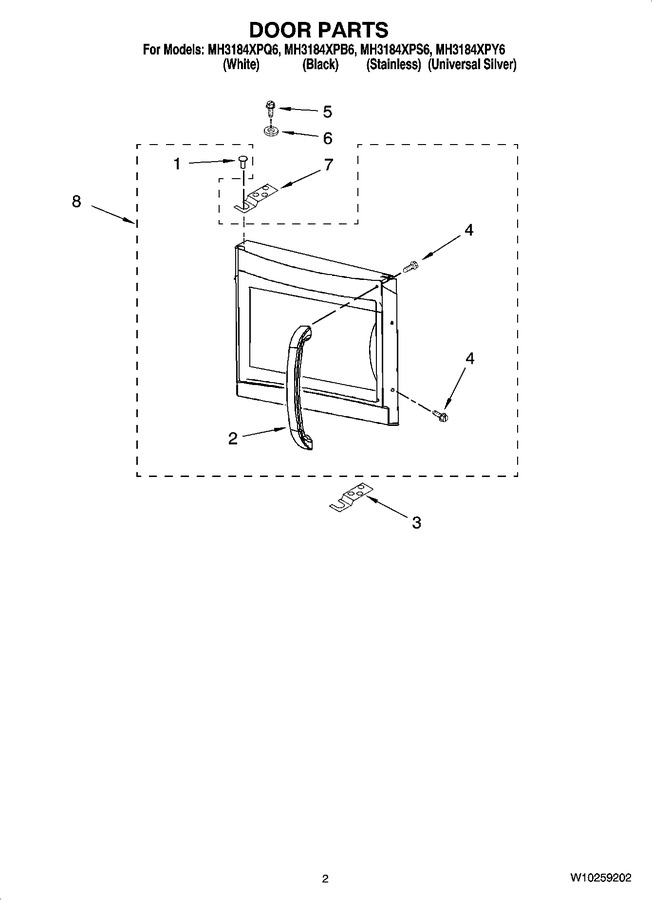

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184922 | Pivot, Door |
|
- | |||||
| 2 | W10113945 | Handle, Door (white) |
|
- | |||||
| 2 | 8206176 | Handle, Door (stainless) |
|
- | |||||
| 2 | W10246505 | Handle, Door (black) (Replaces: 8205829) |
|
$ 201.06 | |||||
| 3 | W10256901 | Lower Hinge |
|
- | |||||
| 4 | 8169479 | Screw |
|
$ 7.30 | |||||
| 5 | 8169480 | Screw (Replaces: 8204690) |
|
$ 13.01 | |||||
| 6 | WP8533914 | Washer (Replaces: 8204691) |
|
Immediately | $ 4.72 | ||||
| 7 | W10256902 | Upper Hinge |
|
- | |||||
| 8 | 8205370 | Complete Door (white) |
|
- | |||||
| 8 | 8205371 | Complete Door (stainless) |
|
- | |||||
| 8 | 8206194 | Complete Door (universal Silver) |
|
- | |||||
| 8 | 8205372 | Complete Door (black) |
|
- |
