01 - Control Panel Parts


02 - Door Parts

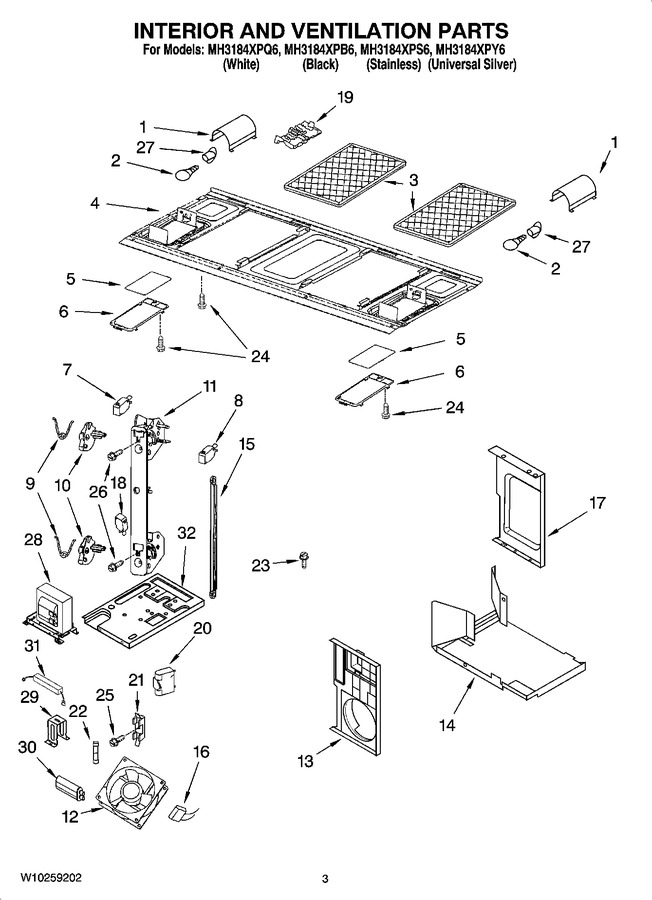

03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8205096		Reflector, Lamp		Appelez-nous	-
2	8206232A		Lamp   (Replaces: 8183993)			Immediately	$ 7.71
3	W10113040A		Filter, Grease   (Replaces: 8184001)			Immediately	$ 23.81
4	W10244597		Plate, Bottom		Appelez-nous	-
5	8184141		Glass, Lamp				$ 34.66
6	8184889		Holder, Glass		Appelez-nous	-
7	W10211972		Switch, Micro Primary/secondary			Immediately	$ 52.40
8	W10211974		Switch, Micro			Immediately	$ 60.44
9	8169438		Spring, Interlock				$ 10.69
10	8205211		Plate, Cam		Appelez-nous	-
11	8185189		Support, Interlock				$ 36.40
12	W10239608		Fan, Dc 12 Volt		Appelez-nous	-
13	8205364		Housing, Fan		Appelez-nous	-
14	8205357		Diffuser, Housing		Appelez-nous	-
15	8185190		Rod-locking Link		Appelez-nous	-
16	8184091		Capacitor, 125 V		Appelez-nous	-
17	8206455		Plate, Side		Appelez-nous	-
18	W10269458		Switch, Micro   (Replaces: W10211973)			Immediately	$ 40.11
19	8184202		Cover, Terminal		Appelez-nous	-
20	8184091		Motor, Capacitor		Appelez-nous	-
21	W10117908		Holder, Fuse				$ 52.71
22	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
23	8184199		Screw		Appelez-nous	-
24	4393835		Screw				$ 11.83
25	8184200		Screw		Appelez-nous	-
26	8169479		Screw   (Replaces: 8169477)				$ 7.30
27	WPW10210878		Holder, Lamp   (Replaces: W10210878)			Immediately	$ 34.87
28	8206456		Transformer, H.v.				$ 246.11
29	8206457		Bracket, Capacitor		Appelez-nous	-
30	W10258597		Capacitor, H.v.		Appelez-nous	-
31	W11256462		Diode, H.v.   (Replaces: W10163432)			Immediately	$ 34.86
32	8206567		Chassis		Appelez-nous	-
