Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10275101 Washer, Waved Appelez-nous -
12 B5720301 Clip Appelez-nous -
13 WP627843 Ejector   (Replaces: R0183119) Special Order $ 87.78

21 WPM0223101 Nut, Locking   (Replaces: M0223101) Special Order $ 8.06

23 WP628356 Inlet, Water   (Replaces: R0156627) Special Order $ 53.75

33 WPW10190972 Ice Maker, (220 V 50 Hz)   (Replaces: R0156831) Special Order $ 177.49

41 10113801 Bar, Crsh Ice Bucket Special Order $ 4.96

42 D7820401 Cover Im Appelez-nous -
43 WP2182124 Stripper, Ice   (Replaces: R0183120) Special Order $ 90.35

52 D7877001 Arm,ice Maker Shut Off Appelez-nous -
53 WP627985 N/a See Notes-thermostat   (Replaces: R0161060) Special Order $ 114.64

61 WPD7749401 Cap, Helix End   (Replaces: D7749401) Special Order $ 29.01

62 D7843601 Harness, Im Appelez-nous -
63 R0191004 Wing Nut Appelez-nous -
71 10114401 Agitator, Ice Special Order $ 107.74

72 D7846201 Shield Im Appelez-nous -
73 R0150106 Module & Motor Assy. 230v 60hz Appelez-nous -
81 10114703 Wheel, Crsh Ice Appelez-nous -
82 D7846304 Ice Maker Appelez-nous -
91 10111905 Bucket, Crushed Ice Special Order $ 104.60

92 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

101 10870906 Front-ci Bucket Appelez-nous -
111 67006425 Screw, Sm   (Replaces: M0238642) In-Stock Immediately $ 7.30

123 WP628379 Clip, Thermal Fuse   (Replaces: B8389801) Special Order $ 11.10

131 10115001 Front, Ice Crusher Special Order $ 25.55

133 B8391801 Bracket, I/m Appelez-nous -
141 10114003 Cover, Blade Appelez-nous -
143 M0211116 Screw, Sm Appelez-nous -
151 10114601 Blade, Static Appelez-nous -
153 WP2195914 Support   (Replaces: R0183121) Special Order $ 109.80

161 10113901 Spacer, Cover Appelez-nous -
163 R0186041 Screw Appelez-nous -
171 10114501 Blade, Rotating Appelez-nous -
173 R0186040 Screw Appelez-nous -
181 10275201 Damper, Ice Appelez-nous -
191 10114301 Washer Stepped Appelez-nous -
201 M1200108 Pin, Roll Appelez-nous -
211 10114101 Anchor, Blade Appelez-nous -
221 M0231704 Screw, Tf Appelez-nous -
501 10894901 Brkt, Cover Mtg. Appelez-nous -
NI WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30


    View Diagram in Separate Window     Print Icon   Print Part List

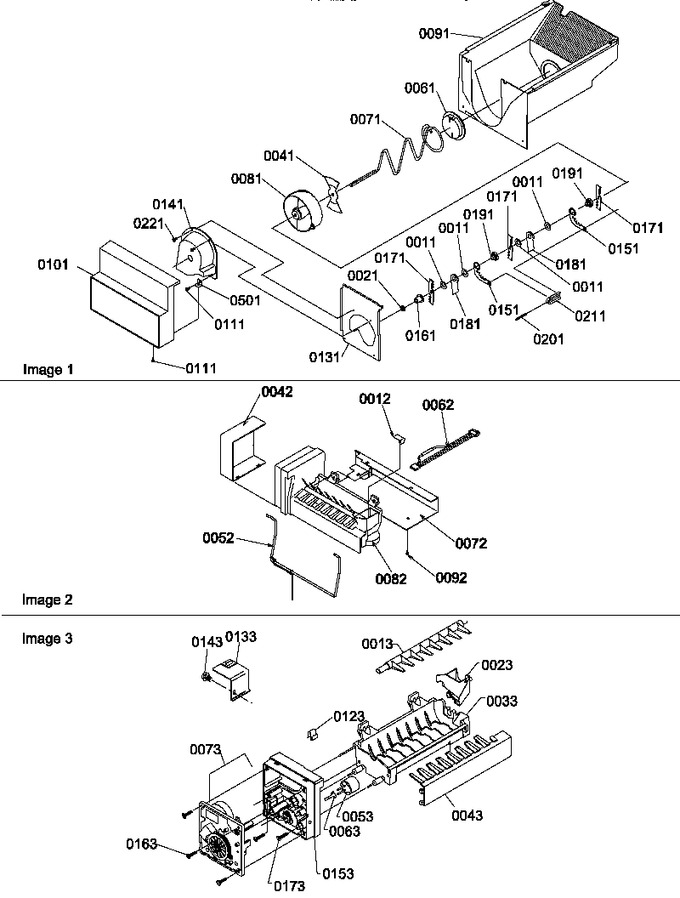

Diagram for SRD325S5E (BOM: P1307203W E)
