Diagram # Part Number Description Series Availability Ships Price Add to Cart
51 D7788811 Cover,auger Mtr-e Ct Appelez-nous -
61 12047001 Motor-auger Appelez-nous -
71 10114901 Driver (ice Maker) Special Order $ 1.61

81 WPM0223101 Nut, Locking   (Replaces: M0223101) Special Order $ 8.06

151 D7846017 Ass`y, Fz Back Appelez-nous -
222 D7547411 Control-damper Appelez-nous -
232 C8902601 Insert, Control Appelez-nous -
242 10862703 Cover, Control Appelez-nous -
252 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

271 M0213529 Screw Appelez-nous -
331 WPW10139210 Screw, Tc   (Replaces: M0226528) Special Order $ 8.03

402 10176602 Air Duct, Waxed Appelez-nous -
511 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

532 D7788201 Insulation Appelez-nous -
541 D7749206 Support,auger Motor Appelez-nous -
552 D7822406 Box, Control Btm Appelez-nous -
581 D7838302 Cover, Supply Air Appelez-nous -
651 B8386602 Gasket Appelez-nous -
662 M0216539 Screw Appelez-nous -
671 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

722 A3044208 Spacer Damper Appelez-nous -
732 D7868606 Box, Control Top Appelez-nous -
782 B8345401 Gasket, Damper Appelez-nous -
812 10177901 Gasket, Air Duct Appelez-nous -
881 C8976201 Clamp Appelez-nous -
891 C8976102 Gasket, Air Block Appelez-nous -
901 A3030305 Gasket-per Ft Appelez-nous -
962 C8977301 Clamp Appelez-nous -
972 WP489474 Screw 1``   (Replaces: M0211021) In-Stock Immediately $ 8.55

1092 C8992302 Brkt-control Cover Appelez-nous -
1341 D7849904 Glide, Freezer Rh Appelez-nous -
1382 D7795828 Knob, Wh Control (red) Appelez-nous -
1392 D7795826 Knob, Control (wht) Appelez-nous -
1402 D7846103 Control-temp Appelez-nous -
1411 C8931609 Capacitor (420 Vac) Appelez-nous -
1551 67005375 Glide-l Fz   (Replaces: D7849903) Special Order $ 312.82

2081 M0585203 Tie, Wire Appelez-nous -
2091 A3127414 Ext. Fill Tube Appelez-nous -
2102 10383201 Gasket, Damper Appelez-nous -
2171 D7821004 Support-im Appelez-nous -
4701 10655902 Evap Cover- E Ct Appelez-nous -
6501 B8386612 Gasket Appelez-nous -
7122 67006425 Screw   (Replaces: M0239229) In-Stock Immediately $ 7.30


    View Diagram in Separate Window     Print Icon   Print Part List

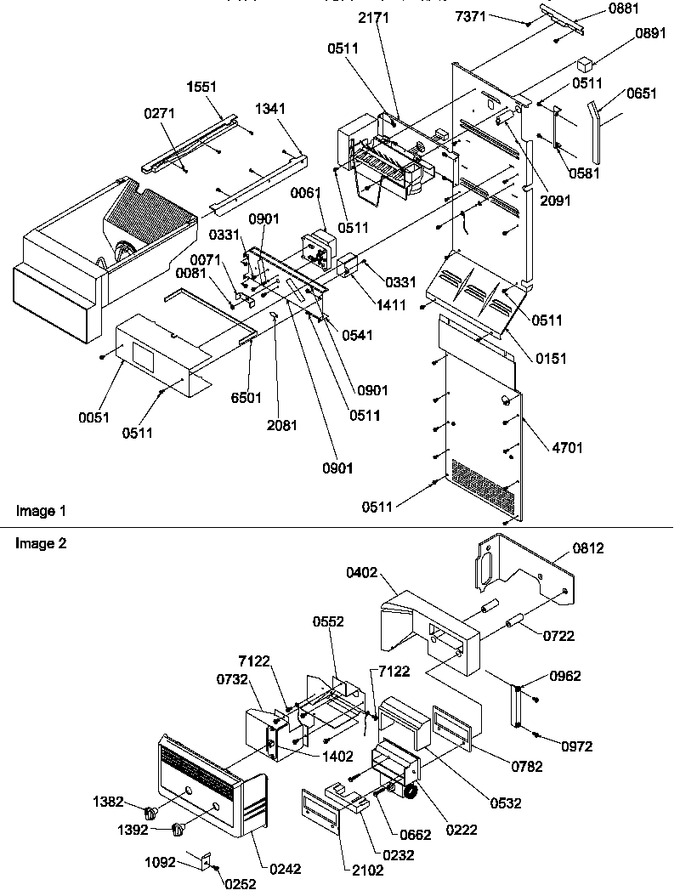

Diagram for SRD325S5E (BOM: P1307203W E)
