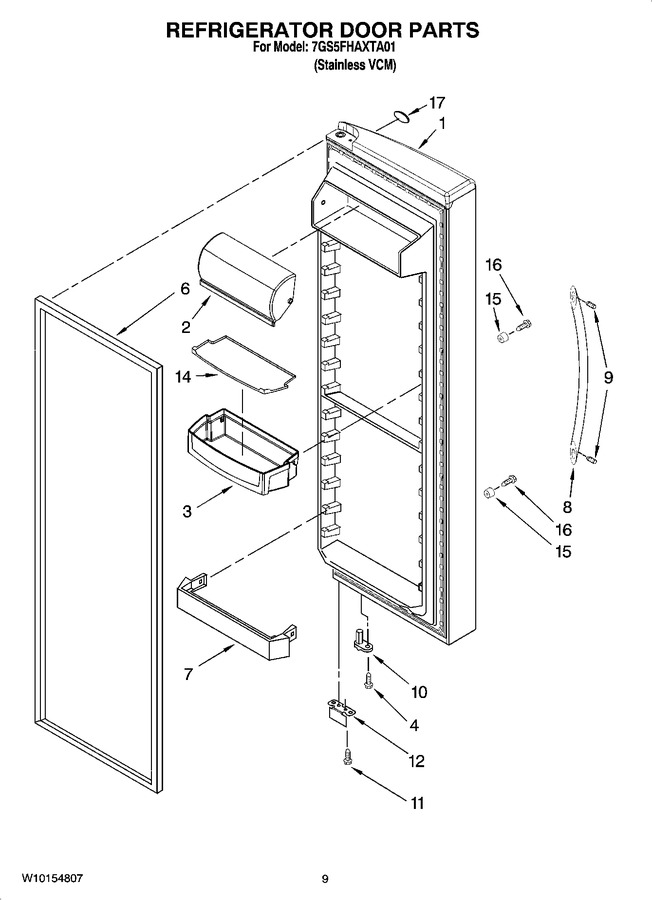

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10119882 | Refrigerator Door (includes Item 6) (stainless Vcm) |
|
- | |||||
| 2 | WP2256101 | Compartment Door (Replaces: 2256101) |
|
Immediately | $ 85.16 | ||||
| 3 | 2223239K | Door Bin (3) |
|
- | |||||
| 4 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 6 | WPW10136734 | Door Gasket, Magnetic (gray) (Replaces: 2326338) |
|
$ 319.42 | |||||
| 7 | WP2156022 | Shelf Bin (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 8 | 2254604S | Handle (stainless Steel) |
|
$ 104.99 | |||||
| 9 | 8533918 | Set Screw |
|
- | |||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 12 | 2200082 | Bracket, Door Stop (chrome) |
|
$ 5.83 | |||||
| 14 | 2223464K | Mat-bin, Blue |
|
- | |||||
| 15 | WPW10170540 | Stud-mounting (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 16 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 17 | 2220214 | Nameplate |
|
$ 32.43 |
