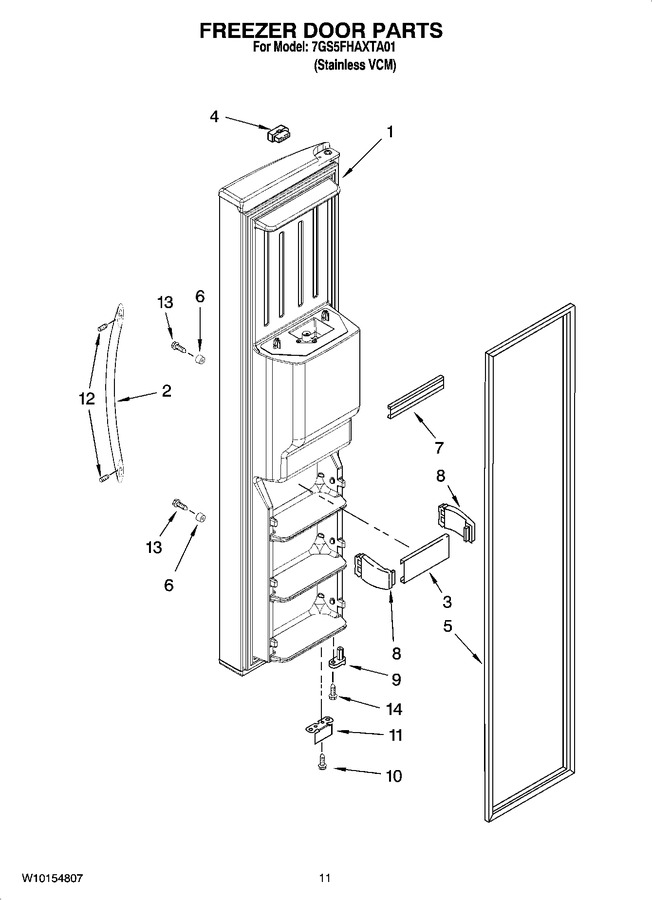

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10119944 | Freezer Door (includes 5 And Dispenser Front Parts) (stainless Vcm) |
|
- | |||||
| 2 | 2254604S | Handle (stainless Steel) |
|
$ 104.99 | |||||
| 3 | 2313199 | Trim, Door (3) (Replaces: 2313199K) |
|
$ 86.60 | |||||
| 4 | 1128252 | Connector |
|
- | |||||
| 5 | W10136735 | Door Gasket, Magnetic (gray) (Replaces: 2326339) |
|
$ 254.84 | |||||
| 6 | WPW10170540 | Stud-mounting (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 7 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 23.11 | ||||
| 8 | 2195917 | Endcap (6) |
|
- | |||||
| 9 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 10 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 11 | 2200082 | Bracket, Door Stop (chrome) |
|
$ 5.83 | |||||
| 12 | 8533918 | Set Screw |
|
- | |||||
| 13 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 14 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 |
