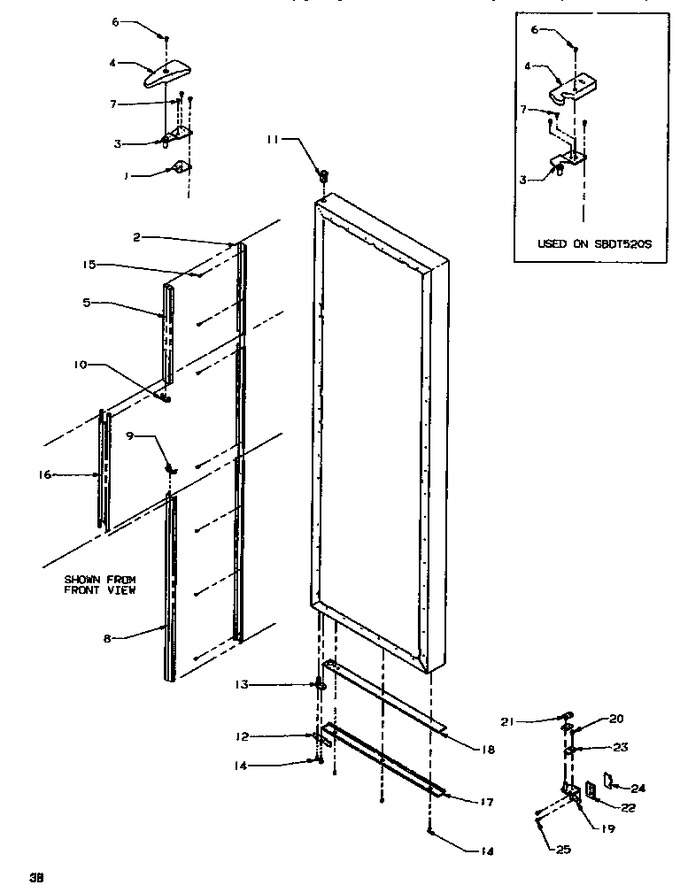

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	10495803		Hinge, Top (e-ct)		Appelez-nous	-
4	10849403		Cover E Hinge		Appelez-nous	-
4	10849401		Cover W Hinge		Appelez-nous	-
4	10849402		Cover-l Hinge		Appelez-nous	-
6	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.55
7	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
11	10393802		Bushing, Door (wht)		Appelez-nous	-
11	10393803		Bushing, Door (blk)		Appelez-nous	-
12	C8972406		Stop, L Door		Appelez-nous	-
12	C8972405		Stop-w Door		Appelez-nous	-
12	C8972403		Stop, Door (blk)		Appelez-nous	-
13	R0181181		Kit,dr Closure   (Replaces: D7751404)			Immediately	$ 7.55
13	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 7.55
14	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
19	10496105		Kit,hinge Rh Btm(b)		Appelez-nous	-
19	10496108		Hinge, Bottom		Appelez-nous	-
20	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 14.91
21	B8387701		Shim, Door Closure		Appelez-nous	-
21	B8387702		Shim, Door Closure		Appelez-nous	-
22	10399501		Kit,btm Hinge Shim		Appelez-nous	-
22	10399502		Kit,btm Hinge Shim		Appelez-nous	-
23	R0181181		Kit,dr Closure   (Replaces: D7748302)			Immediately	$ 7.55
23	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 7.55
24	10860201		Kit, Bot.hinge Shim		Appelez-nous	-
25	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
