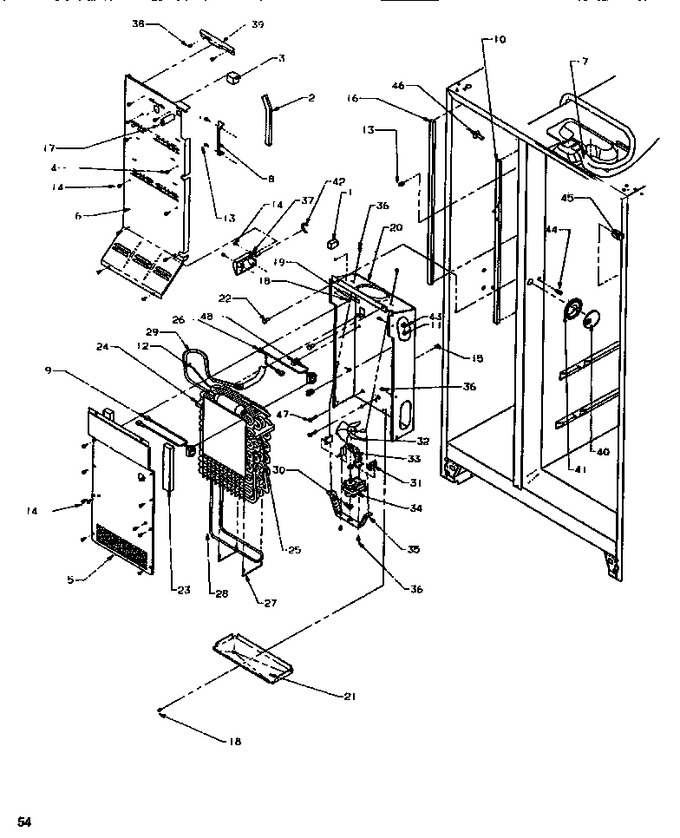

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B8386603 | Gasket |
|
- | |||||
| 2 | B8386602 | Gasket |
|
- | |||||
| 3 | C8976102 | Gasket, Air Block |
|
- | |||||
| 4 | M0232330 | Screw, Spextite |
|
- | |||||
| 5 | D7865914 | Cover, Evap. |
|
- | |||||
| 6 | D7846011 | Assy, Frz Back |
|
- | |||||
| 7 | 10346301 | Harness-ref Liner |
|
- | |||||
| 8 | D7838302 | Cover, Supply Air |
|
- | |||||
| 9 | R0161085 | Kit, Thermostat (Replaces: C8972010) |
|
$ 124.18 | |||||
| 10 | A3189347 | Gasket |
|
- | |||||
| 11 | M0227217 | Screw, Sm |
|
- | |||||
| 12 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 13 | M0322202 | Tie Wire |
|
- | |||||
| 14 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 15 | M0580002 | Grommet A |
|
- | |||||
| 16 | A3189346 | Gasket |
|
- | |||||
| 17 | A3127412 | Ext. Fill Tube |
|
- | |||||
| 18 | 10098801 | Rivet |
|
- | |||||
| 19 | A3189362 | Gasket, Foam |
|
- | |||||
| 20 | D7865812 | Evap. Shield |
|
- | |||||
| 21 | D7850202 | Drip Tray Pnt. |
|
- | |||||
| 22 | M0580003 | Grommet |
|
- | |||||
| 23 | A3030321 | Gasket |
|
- | |||||
| 24 | 10629601 | Block, Air Coil (left) |
|
- | |||||
| 25 | 10629001 | Block, Air Coil (right) |
|
- | |||||
| 26 | C8972011 | Defrost Thermostat Assy. |
|
- | |||||
| 27 | W11673433 | Clip, Evap Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 28 | WP10428406 | Heater, Evap. (230 Vac) (Replaces: 10428406) |
|
$ 100.32 | |||||
| 29 | R0170055 | Assy,low Side(sxs 22) |
|
$ 322.79 | |||||
| 30 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 31 | A1047901 | Shim |
|
- | |||||
| 32 | C8795501 | Fan-evap |
|
- | |||||
| 33 | C8881301 | Brkt Evap Fan |
|
- | |||||
| 34 | WP10513804 | Motor, Evap. (Replaces: C8891604) |
|
$ 256.76 | |||||
| 35 | D7767705 | Brkt, Mtr Shroud |
|
- | |||||
| 36 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 38 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 39 | C8976201 | Clamp |
|
- | |||||
| 40 | 10164808 | Grille, Control |
|
- | |||||
| 41 | 10164702 | Control-air |
|
- | |||||
| 43 | M0272803 | Lock Washer |
|
- | |||||
| 44 | 10426801 | Clip, Air Tunnel |
|
- | |||||
| 46 | M0560005 | Support |
|
- | |||||
| 47 | 10527401 | Clip, Evap |
|
- | |||||
| 48 | 10623003 | Clip, Evaporator |
|
- |
