SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves & Crisper Assy


04 - Drain, Rollers & Evap Assy

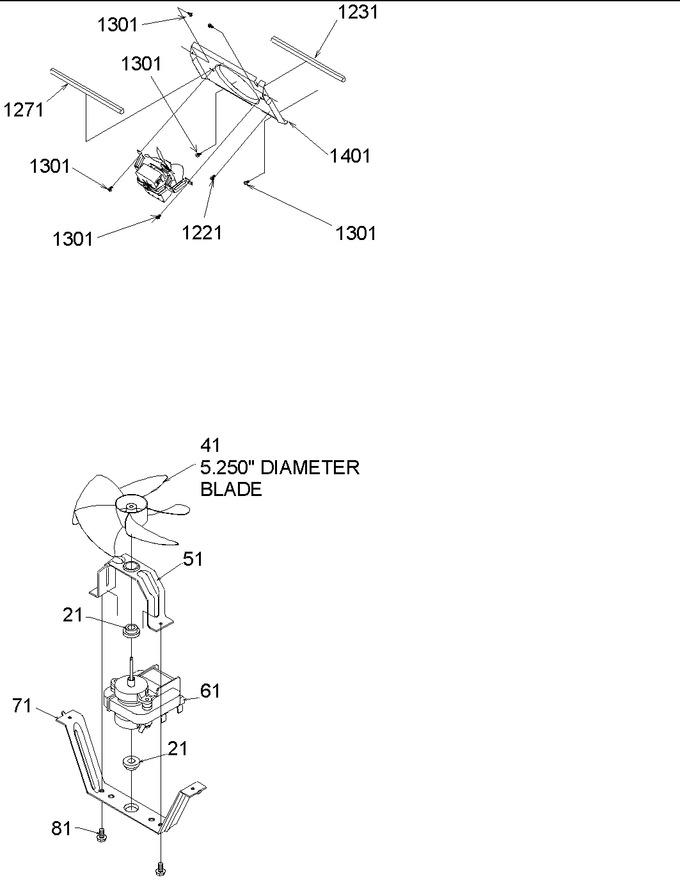

05 - Evaporator Fan Shroud & Motor Assy


06 - Façade Dispenser Cover & Elec. Brkt Assy


07 - Freezer Door


08 - Freezer Shelves & Lights


09 - Ice Bucket Auger & Ice Maker Parts


10 - Ice Maker/control Assy


11 - Lights, Hinges & Shelving


12 - Machine Compartment


13 - Refrigerator Door, Trim & Handles


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 41.55
41	WP12059901		Fan-evap/5.250 Blade   (Replaces: 12059901)				$ 17.70
51	10656102		Brkt-mtr Mt/up		Appelez-nous	-
61	WP10513804		Motor-evap Fanr0161090c, 50hz)   (Replaces: 10513805)				$ 231.08
71	10909401		Brkt, Mtr Mt		Appelez-nous	-
81	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 7.43
1221	WP489399		Screw   (Replaces: M0232903)				$ 6.57
1231	B8386608		Gasket		Appelez-nous	-
1271	B8386607		Gasket (1=1ft.)		Appelez-nous	-
1301	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 7.43
1401	10890202		Evap Fan Shroud		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
