SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves & Crisper Assy


04 - Drain, Rollers & Evap Assy


05 - Evaporator Fan Shroud & Motor Assy


06 - Façade Dispenser Cover & Elec. Brkt Assy


07 - Freezer Door


08 - Freezer Shelves & Lights


09 - Ice Bucket Auger & Ice Maker Parts


10 - Ice Maker/control Assy


11 - Lights, Hinges & Shelving


12 - Machine Compartment


13 - Refrigerator Door, Trim & Handles

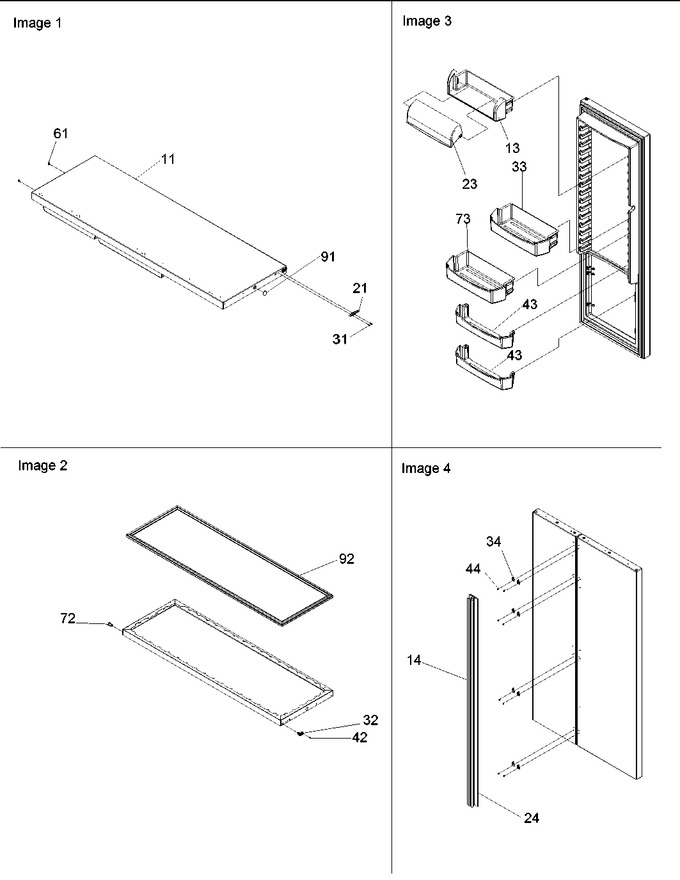

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12309703EQ		Assy, Ref Door (black)		Appelez-nous	-
13	12308603		Frame, Dairy				$ 26.46
14	12438907		Handle, Frz Door (black)		Appelez-nous	-
21	C8972407		Stop, Door (blk)		Appelez-nous	-
23	12308701		Door, Dairy		Appelez-nous	-
24	12438903		Handle, Ref Door (black)		Appelez-nous	-
31	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
32	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
33	12309510		Bucket, Ref Door		Appelez-nous	-
34	12315101		Clip		Appelez-nous	-
42	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.96
43	12311206		Shelf, Ref Door				$ 30.51
44	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
61	M0311604		Plug, Button (blk)		Appelez-nous	-
72	10961002		Bushing, Door (blk)		Appelez-nous	-
73	12309511		Bucket, Ref Door				$ 39.49
91	A3080001		Plug, Button (blk)		Appelez-nous	-
92	R9800048		Assy,ref Dr Gasket(black)		Appelez-nous	-
NI	12310201		Retainer, Ref Bucket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
