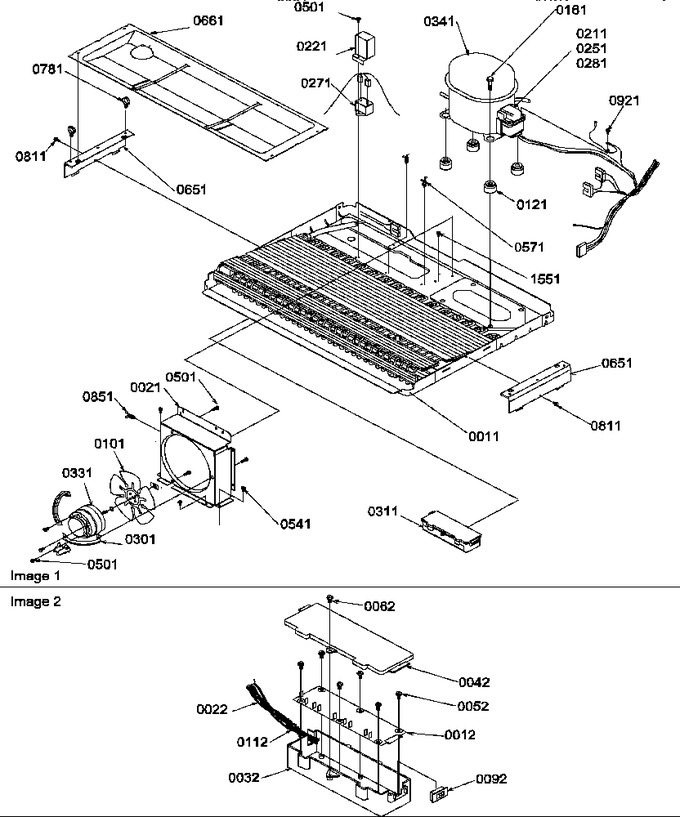

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10544108		Assy,cond/pan-e Ct		Appelez-nous	-
12	12106801		Board, H.v. Pc		Appelez-nous	-
21	10602404		Kit,shroud/brkt Sound		Appelez-nous	-
22	10949601		Harness, Mc		Appelez-nous	-
32	10495901		Box, H. V.		Appelez-nous	-
42	10497801		Cover H.v. Box		Appelez-nous	-
52	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
62	M0216517		Screw		Appelez-nous	-
92	10544502		Switch, Slide		Appelez-nous	-
101	10518702		Blade, Fan		Appelez-nous	-
112	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
121	WPW10169124		Grommet, Compressor   (Replaces: 10835901)				$ 7.55
161	M0221523		Screw, Shldr		Appelez-nous	-
211	10377015		Overload		Appelez-nous	-
221	10266402		Shield, Capacitor		Appelez-nous	-
251	WP10097202		Ptc Relay   (Replaces: 10097202)				$ 124.93
271	WP65889-4		Capacitor   (Replaces: C8931604)			Immediately	$ 61.14
281	10757301		Cover, Terminal		Appelez-nous	-
301	10496501		Kit,shroud/brkt Sound		Appelez-nous	-
311	Y00000000		See Note Hv Box Assy		Appelez-nous	-
331	833697		Motor, Fan   (Replaces: 10522102)			Immediately	$ 88.15
341	W10160407		Kit, Compressor (1390)   (Replaces: 12049722)				$ 629.92
501	M0223803		Screw		Appelez-nous	-
541	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
571	DC61-40081A		Tie, Wire   (Replaces: M0585401)				$ 0.94
651	10495702		Brkt, Drain Pan Mtg.		Appelez-nous	-
661	10507901		Pan, Drain		Appelez-nous	-
781	M0322202		Tie Wire		Appelez-nous	-
811	A4539601		Pop Rivet		Appelez-nous	-
851	M0585403		Tie Wire		Appelez-nous	-
921	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
1551	WP489399		Screw   (Replaces: M0232903)				$ 7.30
