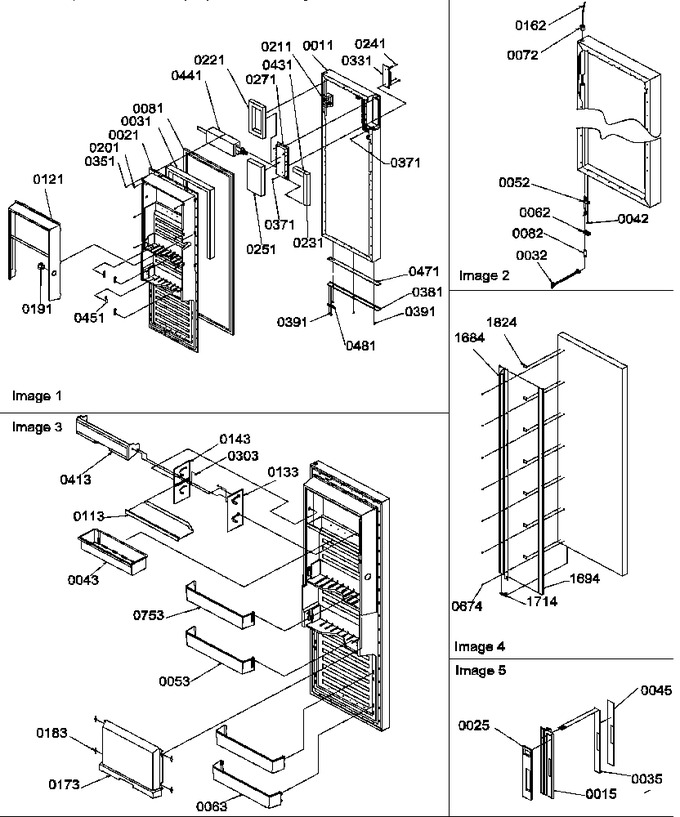

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10898207E		Assy, Ref Dr Fm (black)		Appelez-nous	-
15	12106403		Handle, Ref Dr (ebony)		Appelez-nous	-
21	10861502		Liner-ref Dr		Appelez-nous	-
25	10887804		Gasket-control		Appelez-nous	-
31	B0523590		Insul., Batt		Appelez-nous	-
32	M0335412		Connector-12 Pin		Appelez-nous	-
35	10519401		Assy, Keyboard		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
43	10883901		Bucket-beverage		Appelez-nous	-
45	10603105		Faceplate-e Elect		Appelez-nous	-
52	R0181181		Closure, Door (blk)   (Replaces: 12113402)			Immediately	$ 7.55
53	10520410		Shelf, Chiller		Appelez-nous	-
62	12113302		Closure, Door (blk)		Appelez-nous	-
63	10521814		Shelf-ref Door		Appelez-nous	-
72	C8964402		Bushing, Top		Appelez-nous	-
81	10359703		Gasket, Door (e Ref)		Appelez-nous	-
82	10561601		Assy, Hinge Pin		Appelez-nous	-
113	10883801		Shelf, Dairy		Appelez-nous	-
121	10519004		Frame-chiller		Appelez-nous	-
133	12102905		Track, Dairy Door		Appelez-nous	-
143	12102906		Track, Dairy Door		Appelez-nous	-
162	12212004		Harness, Ref Door		Appelez-nous	-
173	10519208		Door, Chiller		Appelez-nous	-
183	10162101		Glide-igloo Door		Appelez-nous	-
191	12033201		Tunnel-air		Appelez-nous	-
201	10165101		Clip-tubular		Appelez-nous	-
211	B5629063		Insulation Batt		Appelez-nous	-
221	10271101		Insul. Batt.		Appelez-nous	-
231	B5629064		Insulation, Batt		Appelez-nous	-
241	M0217204		Screw		Appelez-nous	-
251	B5612028		Insulation Batt		Appelez-nous	-
271	D7832904		Cover,p.c. Board		Appelez-nous	-
303	M0500706		Seal-o Ring		Appelez-nous	-
331	10614401		Board-low Volt Pc		Appelez-nous	-
351	M0219730		Screw				$ 7.65
371	M0232804		Screw		Appelez-nous	-
381	10602605		Trim, Refrig Door (bottom)		Appelez-nous	-
391	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
413	12103001		Door-dairy		Appelez-nous	-
431	B5629065		Insulation, Batt		Appelez-nous	-
441	B0523585		Insulation Batt Per Foot		Appelez-nous	-
451	10202001		Clip, Retainer		Appelez-nous	-
471	10494603		Support Ref Trim (btm)		Appelez-nous	-
481	C8972403		Stop, Door (blk)		Appelez-nous	-
674	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
753	10520412		Shelf, Chiller		Appelez-nous	-
1684	10887911		Assy, Ref Hndl		Appelez-nous	-
1694	10945907		Insert-e Handle		Appelez-nous	-
1714	10871403		Cap-e Hndl Bot		Appelez-nous	-
1824	10875801		Clip-handle		Appelez-nous	-
NI	B8381401		Grommet-hinge Pin		Appelez-nous	-
NI	B8390601		Grommet-hinge Pin		Appelez-nous	-
