SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy

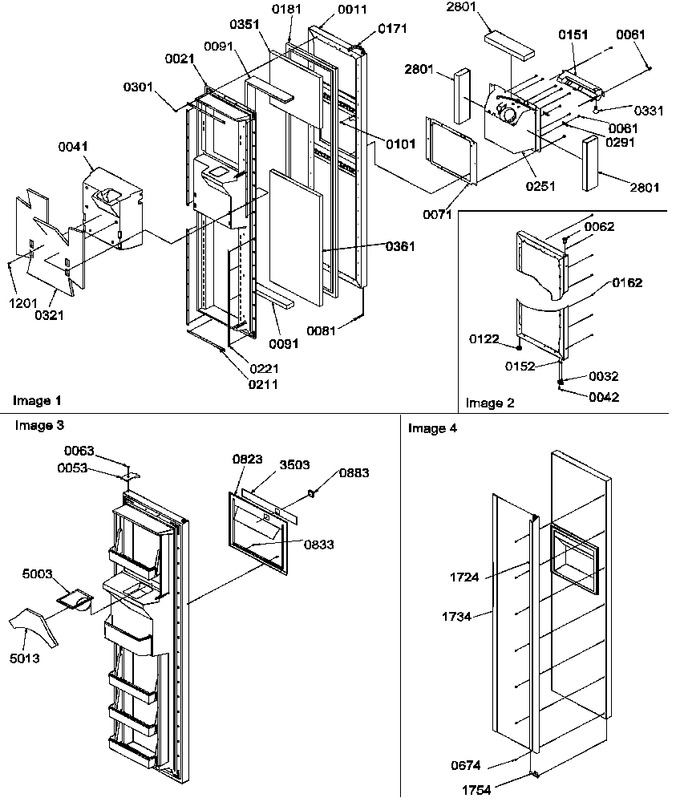

04 - Fz Door


05 - Fz Shelves And Light


06 - Ice & Water Cavity/elec Brkt/toe Grille


07 - Ice Bucket Auger And Ice Maker Parts


08 - Ice Maker\control Assy


09 - Machine Compartment


10 - Ref Door


11 - Ref\fz Shelves, Light, And Hinges


12 - Shelves, Deli, And Crisper Assemblies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10876201E		Assy Frz. Dr Fm		Appelez-nous	-
21	10861001		Liner-i&w Fz Dr		Appelez-nous	-
32	R0181181		Closure-e Door   (Replaces: 12113203)			Immediately	$ 7.55
41	10872801		Insul-i&w Cavity		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
53	10871106		Cap-e Fz Hndl Top		Appelez-nous	-
61	M0216517		Screw		Appelez-nous	-
62	C8964402		Bushing, Top		Appelez-nous	-
63	M0213517		Screw K		Appelez-nous	-
71	D7791003		Gasket Cavity		Appelez-nous	-
81	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
91	B0523563		Insulation Ft. K		Appelez-nous	-
101	WP489399		Screw   (Replaces: M0232903)				$ 7.30
122	M0310336		Plug, Button (blk)		Appelez-nous	-
151	Y00000000		See Note Elec Brkt Assy -- (for Parts Breeakdown See Pages 10 & 11 Image 2)		Appelez-nous	-
152	10161805		Stop-black Door		Appelez-nous	-
162	10281002		Grommet, Screw		Appelez-nous	-
171	10952102		Harness-fz Door		Appelez-nous	-
181	10359704		Gasket Door Frz		Appelez-nous	-
211	C8982801		Retainer, Door Liner		Appelez-nous	-
221	D7828601		Retainer, Door Liner		Appelez-nous	-
251	Y00000000		See Note E Cavity Assy -- (for Parts Breeakdown See Pages 10 & 11 Image 1)		Appelez-nous	-
291	C8992901		Clip		Appelez-nous	-
301	M0219730		Screw				$ 7.65
321	10940701		Insul-disp Batt		Appelez-nous	-
331	W10857122		Light Bulb   (Replaces: M0360001)			Immediately	$ 14.52
351	12016905		Insul, Batt		Appelez-nous	-
361	12016906		Insul, Batt		Appelez-nous	-
674	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
823	10986103		Facade-e Disp		Appelez-nous	-
833	M0219601		Screw		Appelez-nous	-
883	12043808		Cap-black Switch		Appelez-nous	-
1221	M0311601		Plug, Button		Appelez-nous	-
1724	12106208		Handle, Frz Dr (ebony)		Appelez-nous	-
1734	10945919		Insert, E Handle		Appelez-nous	-
1754	10871206		Cap- E Fz Hndl Bot.		Appelez-nous	-
2801	B0523596		Insul. By The Ft.		Appelez-nous	-
3503	10984612		Insert, Facade (black)		Appelez-nous	-
5003	10131401		Ice Chute		Appelez-nous	-
5013	12044601		Gasket-ice Chute		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
