SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy


04 - Fz Door


05 - Fz Shelves And Light


06 - Ice & Water Cavity/elec Brkt/toe Grille


07 - Ice Bucket Auger And Ice Maker Parts


08 - Ice Maker\control Assy


09 - Machine Compartment


10 - Ref Door


11 - Ref\fz Shelves, Light, And Hinges


12 - Shelves, Deli, And Crisper Assemblies

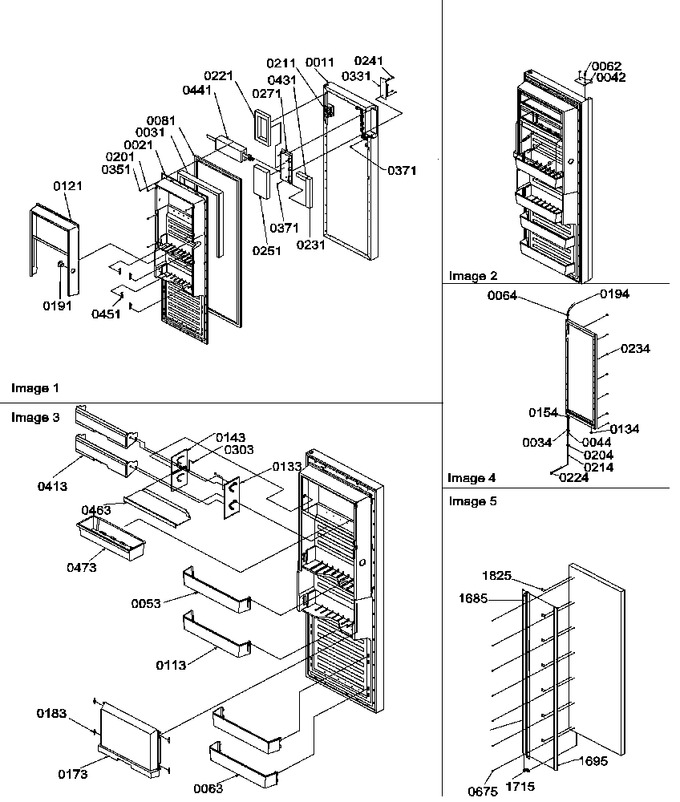

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10876102E		Ass`y, Ref Dr Foam		Appelez-nous	-
21	10861401		Liner-ref Dr		Appelez-nous	-
31	B0523563		Insulation Ft. K		Appelez-nous	-
34	R0181181		Closure, Door (blk)   (Replaces: 12113402)			Immediately	$ 7.55
42	10871303		Cap- E Hndl Top		Appelez-nous	-
44	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
53	10111007		Bucket-igloo		Appelez-nous	-
62	M0213517		Screw K		Appelez-nous	-
63	10521814		Shelf-ref Door		Appelez-nous	-
64	C8964402		Bushing, Top		Appelez-nous	-
81	10359703		Gasket, Door (e Ref)		Appelez-nous	-
113	10520410		Shelf, Chiller		Appelez-nous	-
121	10154901		Frame-igloo Dairy		Appelez-nous	-
133	12102905		Track, Dairy Door		Appelez-nous	-
134	M0310336		Plug, Button (blk)		Appelez-nous	-
143	12102906		Track, Dairy Door		Appelez-nous	-
154	10161805		Stop-black Door		Appelez-nous	-
173	10111809		Door, Igloo		Appelez-nous	-
183	10162101		Glide-igloo Door		Appelez-nous	-
191	10165001		Tunnel-air		Appelez-nous	-
194	10520908		Harness-ref Dr		Appelez-nous	-
201	10165101		Clip-tubular		Appelez-nous	-
204	12113302		Closure, Door (blk)		Appelez-nous	-
211	B5629055		Insulation Batt		Appelez-nous	-
214	10561601		Assy, Hinge Pin		Appelez-nous	-
221	10271101		Insul. Batt.		Appelez-nous	-
224	M0335412		Connector-12 Pin		Appelez-nous	-
231	B5629059		Insulation Batt		Appelez-nous	-
234	10281002		Grommet, Screw		Appelez-nous	-
241	M0217204		Screw		Appelez-nous	-
251	B5612028		Insulation Batt		Appelez-nous	-
271	D7832904		Cover,p.c. Board		Appelez-nous	-
303	M0500706		Seal-o Ring		Appelez-nous	-
331	10614401		Board-low Volt Pc		Appelez-nous	-
351	M0219730		Screw				$ 7.65
371	M0232804		Screw		Appelez-nous	-
413	12103001		Door-dairy		Appelez-nous	-
431	B5629060		Insulation Batt		Appelez-nous	-
441	B0523585		Insulation Batt Per Foot		Appelez-nous	-
451	10202001		Clip, Retainer		Appelez-nous	-
463	10893201		Shelf, Dairy		Appelez-nous	-
473	10883902		Bucket-beverage		Appelez-nous	-
675	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1685	10887911		Assy, Ref Hndl		Appelez-nous	-
1695	10945903		Insert, E Handle		Appelez-nous	-
1715	10871403		Cap-e Hndl Bot		Appelez-nous	-
1825	10875801		Clip-handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
