Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10875717 Handle, Frz Dr (white) Appelez-nous -
2 10871202 Cap-w Fz Hndl Bot. Appelez-nous -
3 10945917 Insert, W Handle Appelez-nous -
4 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

5 10161803 Door Stop Appelez-nous -
6 R0181181 Kit,dr Closure   (Replaces: D7751401) In-Stock Immediately $ 7.55

7 B8387702 Shim, Door Closure Appelez-nous -
7 B8387701 Shim, Door Closure Appelez-nous -
8 M0310308 Plug, Button (wht) Appelez-nous -
9 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

10 10185101 Top Hinge-e Ct Appelez-nous -
11 10849501 Cover-w Hinge Appelez-nous -
12 WP8281196 Screw, Mach   (Replaces: M0202336) In-Stock Immediately $ 7.55

13 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

14 W11214483 Screw, Mach   (Replaces: M0202321) In-Stock Immediately $ 14.72

15 10952101 Harness-fz Door Appelez-nous -
16 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.55

17 10163609 Hinge Assy Bottom Appelez-nous -
18 10399501 Kit,btm Hinge Shim Appelez-nous -
18 10399502 Kit,btm Hinge Shim Appelez-nous -
19 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.55

20 W11227370 Screw, Lock Brake Mounting   (Replaces: M0220418) In-Stock Immediately $ 14.91

21 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

22 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

23 10860201 Kit, Bot.hinge Shim Appelez-nous -
24 10871102 Cap-w Fz Hndl Top Appelez-nous -
25 M0213517 Screw K Appelez-nous -
26 B8389001 Shim, Top Hinge Appelez-nous -
27 10863601 Foil-hng Cover Appelez-nous -
NOTE: R1341 Refrigerant System: This Refrigeration System Incorporates R134a Refrigerant And Approved Service Techniques And Equipment Should Be Applied If Sealed S Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

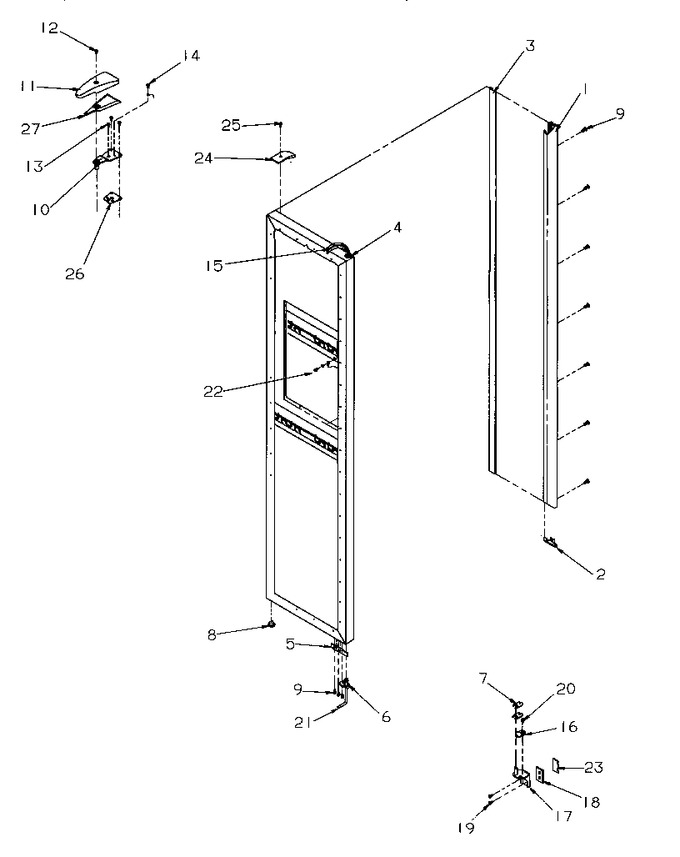

Diagram for SRDE27S3W (BOM: P1190601W W)
