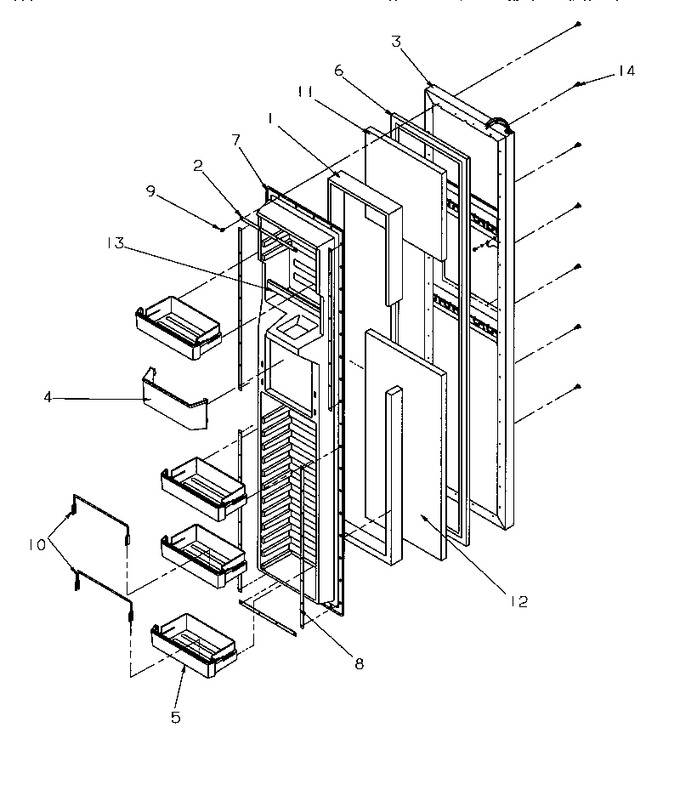

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523563		Insulation Ft. K		Appelez-nous	-
2	C8982801		Retainer, Door Liner		Appelez-nous	-
3	10876201W		Ass`y, Fz Dr Foam		Appelez-nous	-
4	10534707		Shelf, Half Frz		Appelez-nous	-
5	10111206		Bucket-fz Door		Appelez-nous	-
6	10359702		Gasket (w Frz Dr)		Appelez-nous	-
7	10861001		Liner-i&w Fz Dr		Appelez-nous	-
8	D7828601		Retainer, Door Liner		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	10237602		Retainer, Package		Appelez-nous	-
11	12016903		Insul, Batt		Appelez-nous	-
12	12016904		Insul, Batt		Appelez-nous	-
13	C8907235		Retainer Pkg		Appelez-nous	-
14	10281002		Grommet, Screw		Appelez-nous	-
	NOTE:		R134a Refrigerant System: This Refrigerant System Incorporates R134a Refrigerantand Approved Service Techniques And Equipment Should Be Applied If Sealed Syst		Appelez-nous	-
