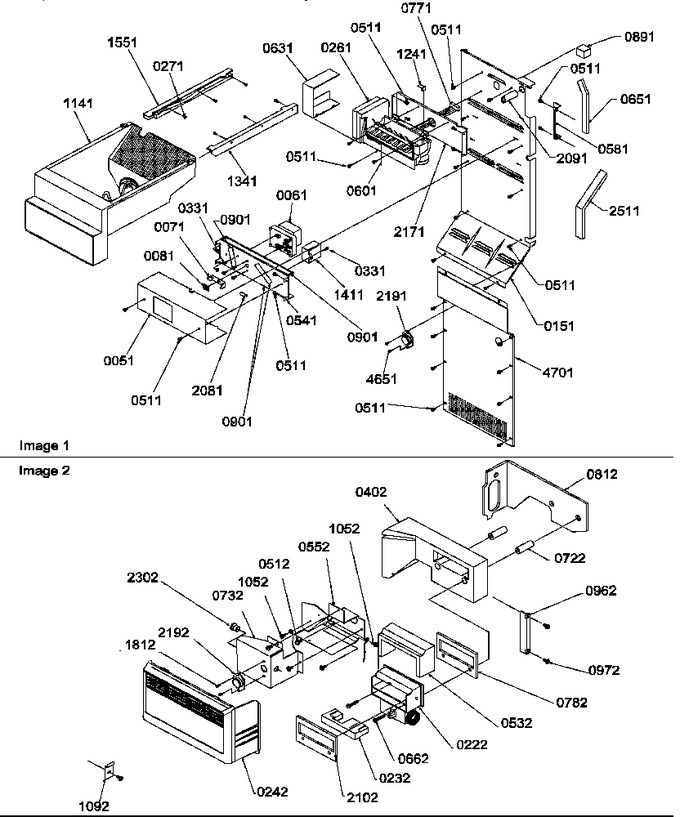

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 51 | D7788811 | Cover,auger Mtr-e Ct |
|
- | |||||
| 61 | 10114804 | Kit, Auger Motor |
|
- | |||||
| 71 | 10114901 | Driver (ice Maker) |
|
$ 1.61 | |||||
| 81 | WPM0223101 | Nut, Locking (Replaces: M0223101) |
|
$ 8.06 | |||||
| 151 | D7821176 | Inner Fz Back-pnt |
|
- | |||||
| 222 | D7832702 | Control-damper |
|
- | |||||
| 232 | C8902601 | Insert, Control |
|
- | |||||
| 242 | 10862702 | Cover-control |
|
- | |||||
| 261 | D7824706Q | Ice Maker (Replaces: D7824704) |
|
Immediately | $ 167.35 | ||||
| 271 | M0213529 | Screw |
|
- | |||||
| 331 | WPW10139210 | Screw, Tc (Replaces: M0226528) |
|
$ 8.03 | |||||
| 402 | 10176604 | Duct-waxed Air |
|
- | |||||
| 511 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 512 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 532 | D7788201 | Insulation |
|
- | |||||
| 541 | D7749205 | Support,auger Motor |
|
- | |||||
| 552 | D7822404 | Box, Bottom Control |
|
- | |||||
| 581 | D7838302 | Cover, Supply Air |
|
- | |||||
| 601 | D7877001 | Arm,ice Maker Shut Off |
|
- | |||||
| 631 | D7820401 | Cover Im |
|
- | |||||
| 651 | B8386602 | Gasket |
|
- | |||||
| 662 | M0216539 | Screw |
|
- | |||||
| 722 | A3044208 | Spacer Damper |
|
- | |||||
| 732 | D7832805 | Top, Cont. Box |
|
- | |||||
| 771 | D7824601 | Harness |
|
$ 57.59 | |||||
| 782 | B8345401 | Gasket, Damper |
|
- | |||||
| 812 | 10177901 | Gasket, Air Duct |
|
- | |||||
| 891 | C8976102 | Gasket, Air Block |
|
- | |||||
| 901 | A3030305 | Gasket-per Ft |
|
- | |||||
| 962 | C8977301 | Clamp |
|
- | |||||
| 972 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 1052 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 1092 | C8992302 | Brkt-control Cover |
|
- | |||||
| 1141 | Y00000000 | See Note Crsh Ice Bkt Assy |
|
- | |||||
| 1241 | B5720301 | Clip |
|
- | |||||
| 1341 | D7849904 | Glide, Freezer Rh |
|
- | |||||
| 1411 | W10613606 | Capacitor (Replaces: C8931605) |
|
Immediately | $ 86.59 | ||||
| 1551 | 67005375 | Glide-l Fz (Replaces: D7849903) |
|
$ 312.82 | |||||
| 1812 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 2081 | M0585203 | Tie, Wire |
|
- | |||||
| 2091 | A3127410 | Ext, Fill Tube |
|
- | |||||
| 2102 | 10383201 | Gasket, Damper |
|
- | |||||
| 2171 | D7821003 | Support-im |
|
- | |||||
| 2191 | C8983701 | Thermistor Domestic |
|
- | |||||
| 2192 | C8983701 | Thermistor Domestic |
|
- | |||||
| 2302 | A4554806 | Snap Bushing |
|
- | |||||
| 2511 | A3189335 | Gasket Foam |
|
- | |||||
| 4651 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 4701 | 10655904 | Evap Cover-e Ct |
|
- |
