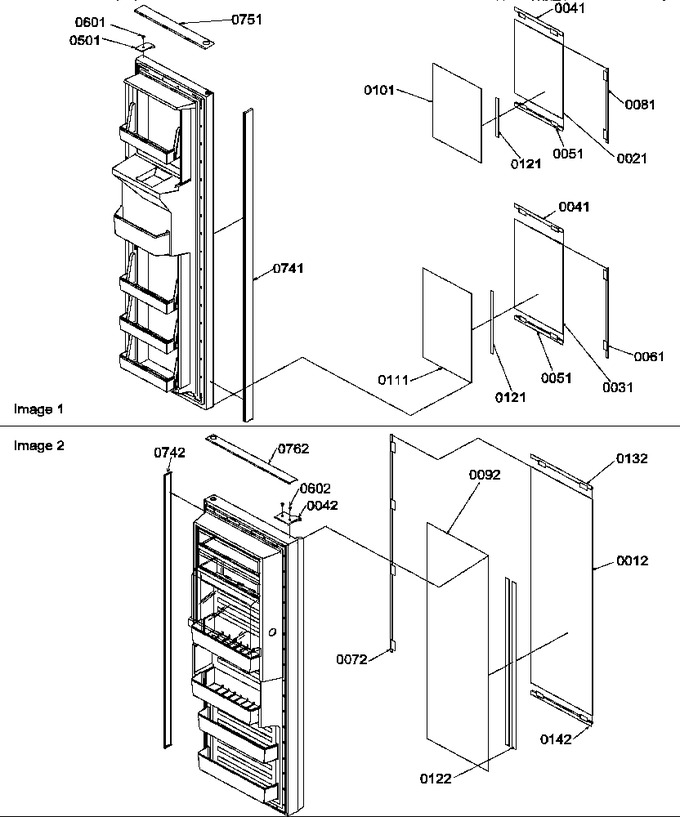

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10704722		Panel-stainless		Appelez-nous	-
21	10704711		Panel-decorator		Appelez-nous	-
31	10704719		Panel-lwr Fz Door		Appelez-nous	-
41	B8391246		Retainer, Lw Frz		Appelez-nous	-
42	10871306		Cap-gy Hndl Top		Appelez-nous	-
51	B8391244		Retainer, Up Frz		Appelez-nous	-
61	B5623481		Retainer, Deco Pnl		Appelez-nous	-
72	B5623480		Retainer, Vent Ref		Appelez-nous	-
81	B5623482		Retainer, Vert Up Fz		Appelez-nous	-
132	B8391229		Retainer, Stn Ref Door		Appelez-nous	-
142	B8391238		Retainer, Ref Dr (stn)		Appelez-nous	-
501	10871112		Cap-gy Fz Hndl Top		Appelez-nous	-
601	M0213517		Screw K		Appelez-nous	-
602	M0213517		Screw K		Appelez-nous	-
741	10133101		Trim Vertical		Appelez-nous	-
742	10133101		Trim Vertical		Appelez-nous	-
751	10980404		Trim, Stn Frz Top		Appelez-nous	-
762	10980305		Trim, Stn Ref Top		Appelez-nous	-
