Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A3189347 Gasket Appelez-nous -
2 B8386602 Gasket Appelez-nous -
3 C8976102 Gasket, Air Block Appelez-nous -
4 10655904 Evap Cover-e Ct Appelez-nous -
5 D7846018 Ass`y, Fz Back Appelez-nous -
6 10962601 Harness-ref Liner Appelez-nous -
7 D7838302 Cover, Supply Air Appelez-nous -
8 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

9 M0560005 Support Appelez-nous -
10 R0161090 Kit, Defrost Thermostat   (Replaces: 12017808) Special Order $ 110.66

11 M0580003 Grommet Appelez-nous -
12 M0322202 Tie Wire Appelez-nous -
13 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

14 10164813 Grille, Control Appelez-nous -
15 A3127410 Ext, Fill Tube Appelez-nous -
16 10098801 Rivet Appelez-nous -
17 B8386608 Gasket Appelez-nous -
18 10893802 Shield, Evap Appelez-nous -
19 D7850202 Drip Tray Pnt. Appelez-nous -
20 R0161085 Kit, Thermostat   (Replaces: 12017801) Special Order $ 124.18

21 10629601 Block, Air Coil (left) Appelez-nous -
22 10629001 Block, Air Coil (right) Appelez-nous -
23 A3189346 Gasket Appelez-nous -
24 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

25 WP10428406 Heater, Evap. (230 Vac)   (Replaces: 10428406) Special Order $ 100.32

26 R0170065 Assy,low Side Appelez-nous -
27 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

28 B8386607 Gasket (1=1ft.) Appelez-nous -
29 R0000199 Fan-evap/5.250   (Replaces: 10890101) Special Order $ 166.01

30 10656101 Brkt Mtr Appelez-nous -
31 WP10513804 Motor, Evaporator 60 Hz 220v   (Replaces: 12044801) Special Order $ 256.76

32 10656001 Brk`t-mtr Mt/lw Appelez-nous -
33 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

34 M0580002 Grommet A Appelez-nous -
35 10164702 Control-air Appelez-nous -
36 C8983701 Thermistor Domestic Appelez-nous -
37 10890202 Evap Fan Shroud Appelez-nous -
38 10527401 Clip, Evap Appelez-nous -
39 10623003 Clip, Evaporator Appelez-nous -
40 M0272803 Lock Washer Appelez-nous -
41 WP489399 Screw, Se   (Replaces: M0232929) Special Order $ 7.30


    View Diagram in Separate Window     Print Icon   Print Part List

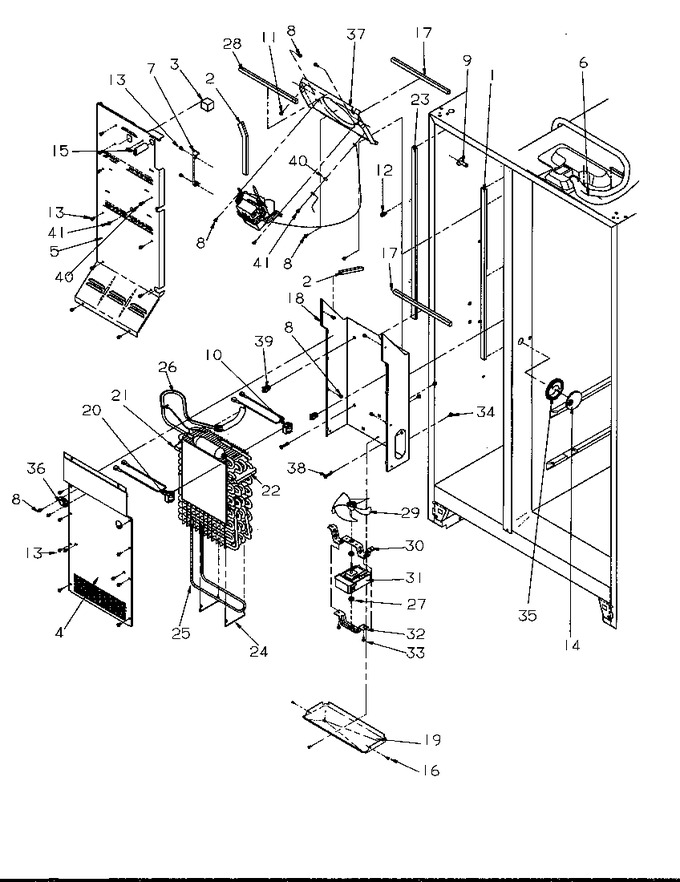

Diagram for SRDE327S3L (BOM: P1184903W)
