Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12106207 Handle, Frz Dr (almond) Appelez-nous -
2 10871204 Cap, Frz Handle Bot(almond) Appelez-nous -
3 10945918 Insert, Handle Appelez-nous -
4 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

5 10161804 Stop-l Door Appelez-nous -
6 R0181181 Closure-e Door   (Replaces: 12113203) In-Stock Immediately $ 7.55

7 B8387703 Shim, Door Closure Appelez-nous -
7 WP67005716 Shim, Dr Closure (blk)   (Replaces: B8387704) Special Order $ 7.83

8 M0310308 Plug, Button (wht) Appelez-nous -
9 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

10 10185101 Top Hinge-e Ct Appelez-nous -
11 10849502 Cover, L Hinge Appelez-nous -
12 WP8281196 Screw-mach   (Replaces: M0202327) In-Stock Immediately $ 7.55

13 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

14 W11214483 Screw, Mach   (Replaces: M0202321) In-Stock Immediately $ 14.72

15 12053601 Harness Frz Dr Appelez-nous -
16 R0181181 Kit,dr Closure   (Replaces: 12113502) In-Stock Immediately $ 7.55

17 10163601 Bottom Hinge, Frz Appelez-nous -
18 10399501 Kit,btm Hinge Shim Appelez-nous -
18 10399502 Kit,btm Hinge Shim Appelez-nous -
19 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.55

20 W11227370 Screw, Lock Brake Mounting   (Replaces: M0220418) In-Stock Immediately $ 14.91

21 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

22 WP489399 Screw, Se   (Replaces: M0232929) Special Order $ 7.30

23 10860201 Kit, Bot.hinge Shim Appelez-nous -
24 10871104 Cap, Frz Handle Top(almond) Appelez-nous -
25 M0213517 Screw K Appelez-nous -
26 B8389004 Shim, Top Hinge Appelez-nous -
27 M0272803 Lock Washer Appelez-nous -
28 M0232330 Screw, Spextite Appelez-nous -
29 M0272803 Lock Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

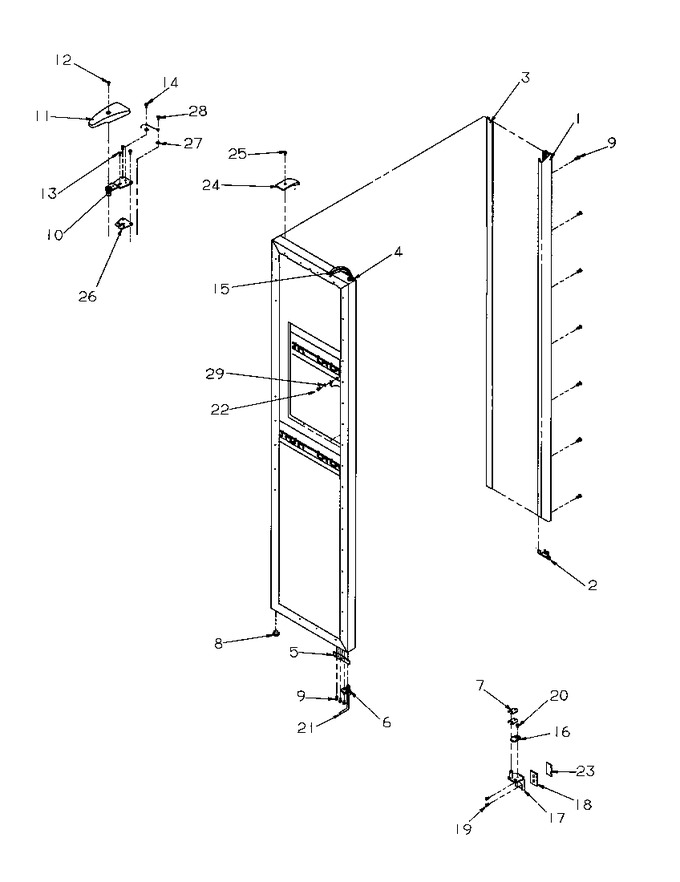

Diagram for SRDE327S3L (BOM: P1184903W)
