Diagram # Part Number Description Series Availability Ships Price Add to Cart
51 D7788811 Cover,auger Mtr-e Ct Appelez-nous -
61 12047001 Motor-auger Appelez-nous -
71 10114901 Driver (ice Maker) Special Order $ 1.61

81 WPM0223101 Nut, Locking   (Replaces: M0223101) Special Order $ 8.06

151 D7846018 Ass`y, Fz Back Appelez-nous -
222 10271401 Damper, Control Appelez-nous -
232 C8902601 Insert, Control Appelez-nous -
242 10862702 Cover-control Appelez-nous -
252 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

261 D7812310 Ice Maker Assy Appelez-nous -
271 M0213529 Screw Appelez-nous -
322 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

331 WPW10139210 Screw, Tc   (Replaces: M0226528) Special Order $ 8.03

402 10176604 Duct-waxed Air Appelez-nous -
511 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

532 D7788201 Insulation Appelez-nous -
541 D7749205 Support,auger Motor Appelez-nous -
552 D7822404 Box, Bottom Control Appelez-nous -
581 D7838302 Cover, Supply Air Appelez-nous -
651 B8386602 Gasket Appelez-nous -
662 M0216539 Screw Appelez-nous -
722 A3044208 Spacer Damper Appelez-nous -
732 D7832805 Top, Cont. Box Appelez-nous -
782 B8345401 Gasket, Damper Appelez-nous -
812 10177901 Gasket, Air Duct Appelez-nous -
891 C8976102 Gasket, Air Block Appelez-nous -
901 A3030305 Gasket-per Ft Appelez-nous -
962 C8977301 Clamp Appelez-nous -
972 WP489474 Screw 1``   (Replaces: M0211021) In-Stock Immediately $ 8.55

1092 C8992302 Brkt-control Cover Appelez-nous -
1141 Y00000000 See Note Crsh Ice Bkt Assy -- (see Image 1 Pages 28 & 29 For Assy Breakdown) Appelez-nous -
1341 D7849904 Glide, Freezer Rh Appelez-nous -
1411 C8931609 Capacitor (420 Vac) Appelez-nous -
1551 67005375 Glide-l Fz   (Replaces: D7849903) Special Order $ 312.82

2081 M0585203 Tie, Wire Appelez-nous -
2091 A3127410 Ext, Fill Tube Appelez-nous -
2102 10383201 Gasket, Damper Appelez-nous -
2171 D7821003 Support-im Appelez-nous -
2192 C8983702 Thermistor-ref Appelez-nous -
2302 A4554806 Snap Bushing Appelez-nous -
4651 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

4701 10655904 Evap Cover-e Ct Appelez-nous -
6501 B8386612 Gasket Appelez-nous -
7132 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

7371 C8983701 Thermistor Domestic Appelez-nous -
7382 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43


    View Diagram in Separate Window     Print Icon   Print Part List

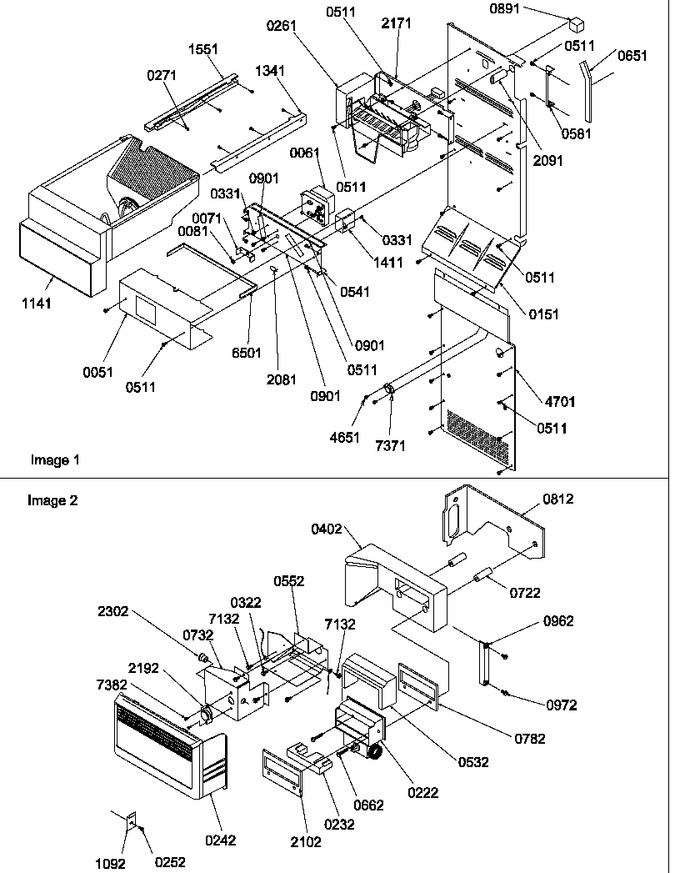

Diagram for SRDE327S3L (BOM: P1307101W L)
