Diagram # Part Number Description Series Availability Ships Price Add to Cart
33 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

202 M0753003 Nut, Sleeve Appelez-nous -
315 D7788914 Assy,mc Back Appelez-nous -
325 M0201216 Screw - Sm Appelez-nous -
384 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

411 10178406 Cover, O.c.back Appelez-nous -
862 A1055101 Spring, Antikink Appelez-nous -
872 A1055105 Spring, Anti Kink Appelez-nous -
971 WP489474 Screw 1``   (Replaces: M0211021) In-Stock Immediately $ 8.55

1112 681390 Screw   (Replaces: M0251015) Special Order $ 13.71

1132 D7827204 Valve, Water (220/240 Vac, 50 Special Order $ 113.44

1212 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

1221 WPM0114003 Clip, Speed   (Replaces: M0114003) Special Order $ 11.60

1262 WP627018 Nut, Sleeve   (Replaces: M0753001) Special Order $ 11.51

1291 M0108001 Clamp, Tube Appelez-nous -
1302 10496302 Brkt, Water Valve Appelez-nous -
1311 10178505 Cover - Wire Appelez-nous -
1605 M0108001 Clamp, Tube Appelez-nous -
2014 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

2051 M0104102 Clip, Cord Special Order $ 8.10

2061 A3189336 Gasket, Foam Appelez-nous -
2071 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 8.17

4023 12182602 Harness-cabinet Appelez-nous -
4784 B5794201 Clamp Appelez-nous -
5915 M0227217 Screw, Sm Appelez-nous -
7011 B5669014 Cord, Power Appelez-nous -
7024 WPB2150504 Drier   (Replaces: 10743201) Special Order $ 136.98

7044 10547001 Clip, Drier Appelez-nous -
7084 WP489399 Screw, Ca   (Replaces: M0239216) Special Order $ 7.30

7151 A4554813 Snap Bushing Appelez-nous -
7211 Y10203701 Strain Relief Appelez-nous -
7221 10377602 Insulation, Term Block Appelez-nous -
7231 C8969204 Block, Term Appelez-nous -
7261 M0219758 Screw Appelez-nous -
7282 M0253504 Screw Appelez-nous -
9911 10786301 Jumper, Pwr Cord Appelez-nous -
NI WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) In-Stock Immediately $ 8.21


    View Diagram in Separate Window     Print Icon   Print Part List

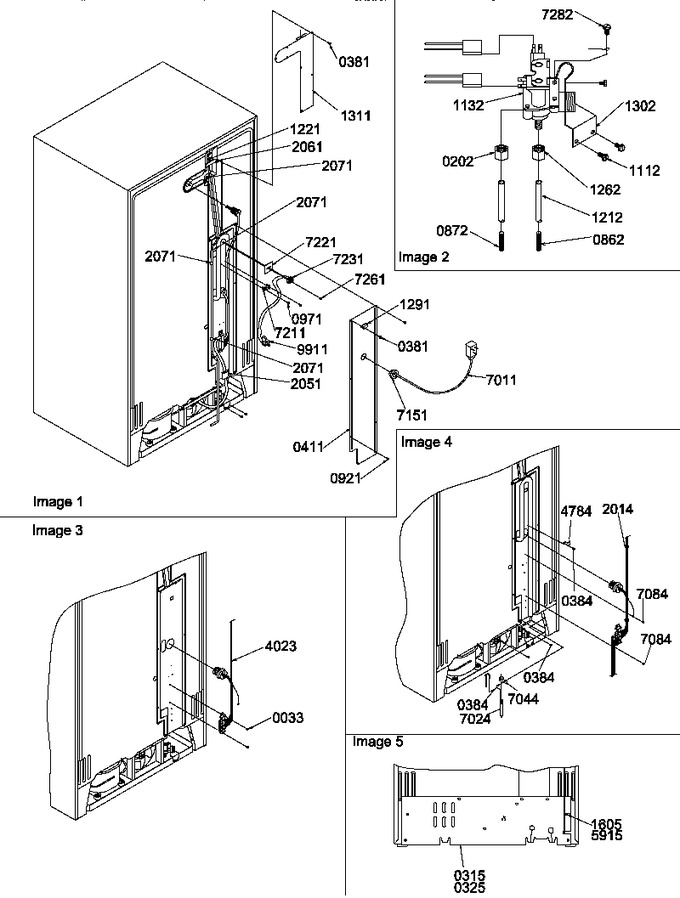

Diagram for SRDE520TBW (BOM: P1308702W W)
