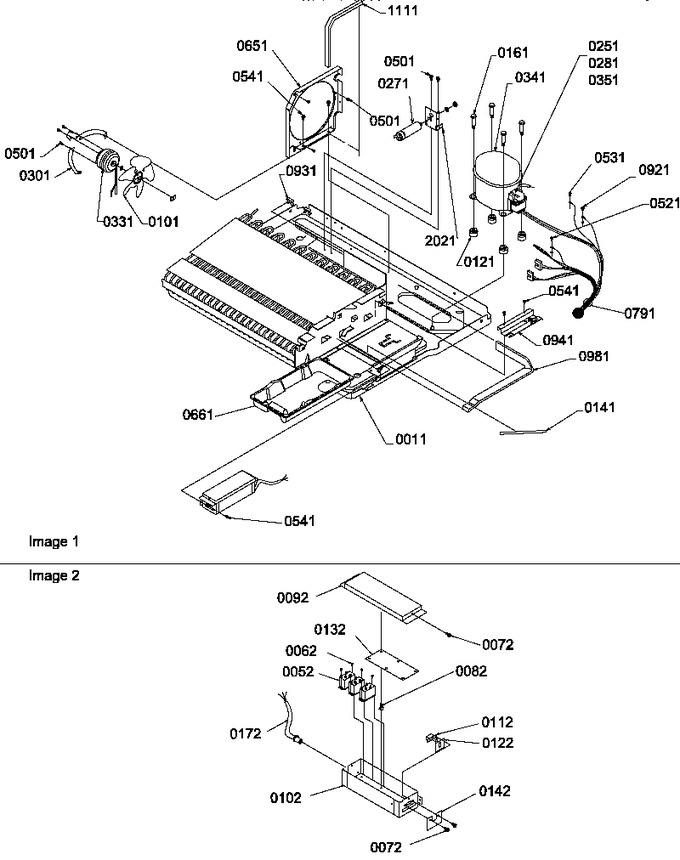

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10883404 | Assy, Cond/pan E-ct |
|
- | |||||
| 52 | 10169902 | Relay |
|
- | |||||
| 62 | M0234114 | Screw |
|
- | |||||
| 72 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 82 | M0585502 | Support-pc Board |
|
- | |||||
| 92 | 10276906 | Top, Hv Box |
|
- | |||||
| 101 | 10518703 | Blade-fan |
|
- | |||||
| 102 | 10277020 | Hv Box- E Ct |
|
- | |||||
| 112 | 10492402 | Switch, Crushed/cube |
|
- | |||||
| 121 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 122 | 10877104 | Cover-switch |
|
- | |||||
| 132 | 10898901 | Board, H.v. Pc |
|
- | |||||
| 141 | B5759645 | Gasket, Sealing |
|
- | |||||
| 142 | 10899002 | Flap, Protective |
|
- | |||||
| 161 | M0221523 | Screw, Shldr |
|
- | |||||
| 172 | 12007603 | Harness, M.c. |
|
- | |||||
| 251 | 10377019 | Overload- 4tm |
|
- | |||||
| 271 | 10958303 | Capacitor |
|
- | |||||
| 281 | 10757301 | Cover, Terminal |
|
- | |||||
| 301 | C8982102 | Brkt,cond. Mtr |
|
- | |||||
| 331 | D7846903 | Motor-condenser (230 Vac,50/60 |
|
- | |||||
| 341 | W10309997 | Compressor Tc Tpa1410y (Replaces: 12049704) |
|
$ 583.93 | |||||
| 351 | 10097206 | Relay |
|
- | |||||
| 501 | M0223803 | Screw |
|
- | |||||
| 521 | M0253916 | Screw |
|
- | |||||
| 531 | WP489128 | Screw (Replaces: M0253516) |
|
$ 11.40 | |||||
| 541 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 651 | 10845505 | Cond. Fn Shrd |
|
- | |||||
| 661 | 10845602 | Pan, Drain |
|
- | |||||
| 791 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 921 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 931 | 10874601 | Clip-cond. |
|
- | |||||
| 941 | 10845302 | H.v. Box Shelf-e Ct |
|
- | |||||
| 981 | A3189367 | Gasket-foam |
|
- | |||||
| 1111 | A3030359 | Gasket |
|
- | |||||
| 2021 | B5696108 | Brkt, Line Filter |
|
- |
